Nissan Sentra Owners Manual: Fog lights (if so equipped)
Replacing the fog light bulb
- Disconnect the negative battery cable.

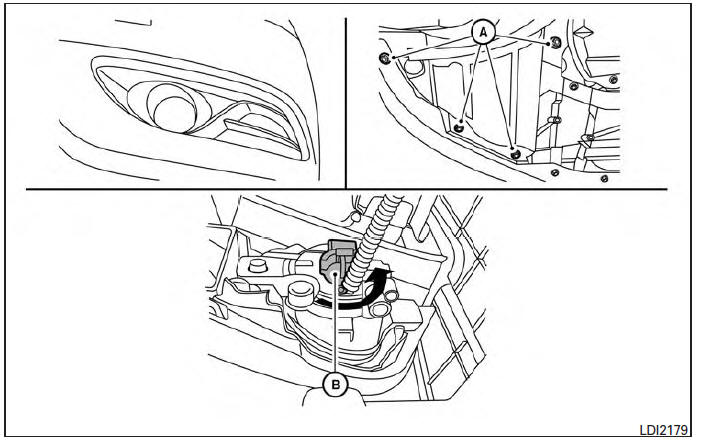

- Remove the fasteners A ; carefully pull back the front fender protector .
- Rotate the bulb B counterclockwise and pull out to remove.
