Nissan Sentra Owners Manual: Emission control information label

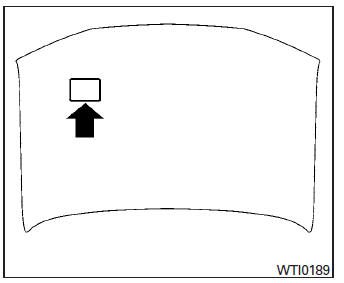

The emission control information label is attached to the underside of the hood as shown.
Tire and loading information label
The cold tire pressure is shown on the Tire and Loading Information label. The label is located as shown.
Air conditioner specification label

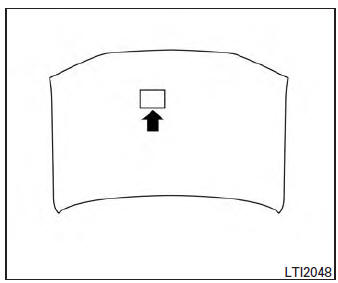

The air conditioner specification label is affixed to the underside of the hood as shown.
F.M.V.S.S./C.M.V.S.S. certification label
The Federal/Canadian Motor Vehicle Safety
Standard (F.M.V.S.S./C.M.V.S.S.) certification label
is affixed as shown. This label contains valuable
vehicle information, such as: Gross Vehicle
Wei ...
Installing front license plate
Use the following steps to mount the front license
plate:
Make holes on the plastic finisher at the
location mark (small dimple) using a 0.20 in
(5 mm) drill. Apply light pressure to the ...
