Nissan Sentra Owners Manual: USB interface (models without Navigation System) (if so equipped)

Connecting a device to the USB input jack

CAUTION

• Do not force the USB device into the USB port. Inserting the USB device tilted or up-side-down into the port may damage the port. Make sure that the USB device is connected correctly into the USB port.

• Do not grab the USB port cover (if so equipped) when pulling the USB device out of the port. This could damage the port and the cover.

• Do not leave the USB cable in a place where it can be pulled unintentionally.

  Pulling the cable may damage the port.

Refer to your device manufacturer’s owner information regarding the proper use and care of the device.

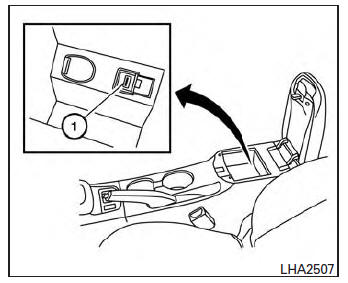

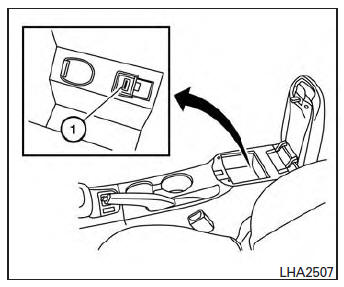

The USB input jack is located in the center console.

Insert the USB device into the jack 1 .

When a compatible storage device is plugged into the jack, compatible audio files on the storage device can be played through the vehicle’s audio system.

Audio file operation

AUX button:

Place the ignition switch in the ON or ACC position and press the AUX button to switch to the USB input mode. If a CD is playing or another audio source is plugged in through the AUX IN jack, the AUX button toggles between the three sources.

Play information:

Information about the audio files being played can be displayed on the display screen of the vehicle’s audio system. Depending on how the audio files are encoded, information such as Folder, Song and Artist will be displayed.

The track number and number of total tracks in the folder are displayed on the screen as well.

SEEK/CAT
(Reverse or Fast Forward) buttons:

Press and hold the SEEK/CAT buttons
or for 1.5 seconds while an audio
file on the USB device is playing to reverse or fast forward the track being played. The track plays at an increased speed while reversing or fast forwarding.

When the button is released, the audio file returns to normal play speed.

SEEK/CAT
buttons:

Press the SEEK/CAT button while
an audio file on the USB device is playing to return to the beginning of the current track. Press the SEEK/CAT button several times to
skip backward several tracks.

Press the SEEK/CAT button while an
audio file on the USB device is playing to advance one track. Press the SEEK/CAT button
several times to skip forward several tracks. If the last track in a folder on the USB device is skipped, the first track of the next folder is played.

RDM button:

When the RDM button is pressed while an audio file on the USB device is playing, the play pattern can be changed as follows:

All Random → 1 Folder Random → OFF

All Random: all tracks on the USB device will be played randomly.

1 Folder Random: all tracks in the current folder will be played randomly.

OFF: No random play pattern is applied. The indicator on the display will turn off.

The current play pattern of the USB device is displayed on the screen unless no pattern is applied.

RPT button:

When the RPT button is pressed while an audio file on the USB device is playing, the play pattern can be changed as follows: 1 Folder Repeat → 1 Track Repeat → OFF

1 Track Repeat: the current track will be repeated.

1 Folder Repeat: the current folder will be repeated.

OFF: No repeat play pattern is applied. The indicator on the display will turn off.

The current play pattern of the USB device is displayed on the screen unless no pattern is applied.

TUNE/SCROLL knob:

If there are multiple folders with audio files on the USB device, turn the TUNE/SCROLL knob to change folders. Turn the knob to the left to skip back a folder. Turn the knob to the right to skip ahead a folder. If there is only one folder of audio files on the USB device, turning the TUNE/SCROLL knob in either direction will return to the first track on the USB device.
