Common item

COMMON ITEM : CONSULT Function (BCM - COMMON ITEM)

APPLICATION ITEM

CONSULT performs the following functions via CAN communication with BCM.

Direct Diagnostic Mode	Description
ECU identification	The BCM part number is displayed.
Self Diagnostic Result	The BCM self diagnostic results are displayed.
Data Monitor	The BCM input/output data is displayed in real time.
Active Test	The BCM activates outputs to test components.
Work support	The settings for BCM functions can be changed.
Configuration	The vehicle specification can be read and saved. The vehicle specification can be written when replacing BCM.
CAN DIAG SUPPORT MNTR	The result of transmit/receive diagnosis of CAN communication is displayed.

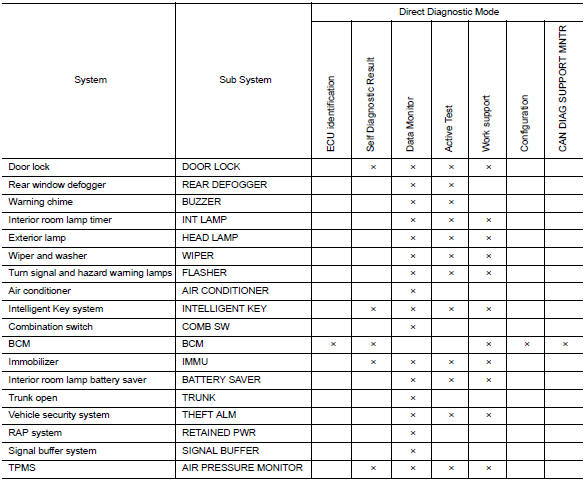

SYSTEM APPLICATION

BCM can perform the following functions.

Int lamp

Int lamp

INT LAMP : CONSULT Function (BCM - INT LAMP)

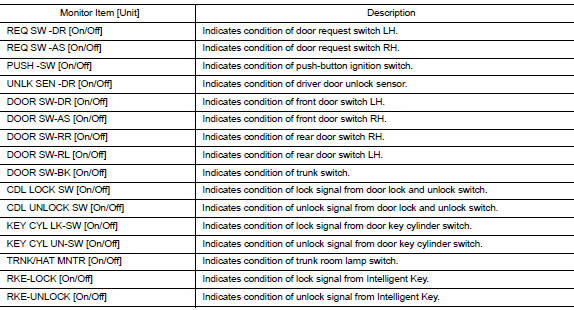

DATA MONITOR

ACTIVE TEST

ACTIVE TEST

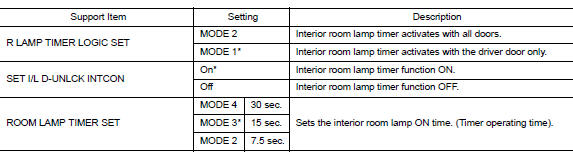

WORK SUPPORT

WORK SUPPORT

*: Initial setting

Battery saver

Battery saver : consult function (bcm - battery saver)

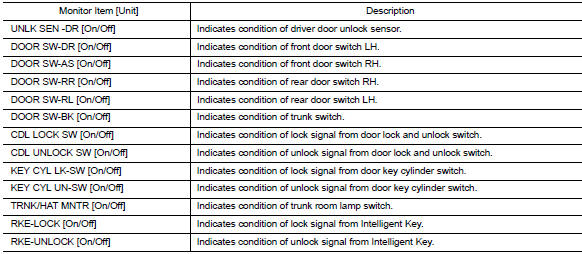

DATA MONITOR

ACTIVE TEST

ACTIVE TEST

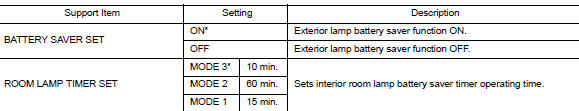

WORK SUPPORT

WORK SUPPORT

*: Initial setting

System

Interior room lamp control system INTERIOR ROOM LAMP CONTROL SYSTEM : System Diagram WITH INTELLIGENT KEY WITHOUT INTELLIGENT KEY INTERIOR ROOM LAMP CONTROL SYSTEM : System Description OU ...

Diagnosis system (bcm) (without intelligent key system)

Common item COMMON ITEM : CONSULT Function (BCM - COMMON ITEM) APPLICATION ITEM CONSULT performs the following functions via CAN communication with BCM. Direct Diagnostic Mode Descriptio ...
