Nissan Sentra Service Manual: Diagnosis system (bcm) (with intelligent key system)

Nissan Sentra Service Manual / Driver controls / Exterior lighting system / System description / Diagnosis system (bcm) (with intelligent key system)

Common item

Common item : consult function (bcm - common item)

Application item

Consult performs the following functions via can communication with bcm.

Direct diagnostic mode

Description

ECU identification The BCM part number is displayed.
Self diagnostic result The BCM self diagnostic results are displayed.
Data monitor The bcm input/output data is displayed in real time.
Active Test The BCM activates outputs to test components.
Work support The settings for bcm functions can be changed.
Configuration
  • The vehicle specification can be read and saved.
  • The vehicle specification can be written when replacing bcm.
CAN DIAG SUPPORT MNTR The result of transmit/receive diagnosis of can communication is displayed.

System application

Bcm can perform the following functions.

Headlamp


Headlamp

HEADLAMP : CONSULT Function (BCM - HEAD LAMP)

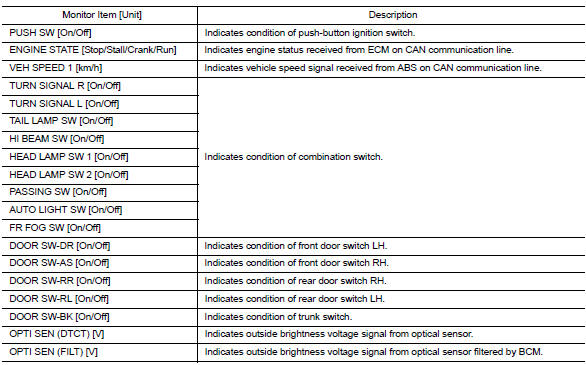

Data monitor

Active test


Active test

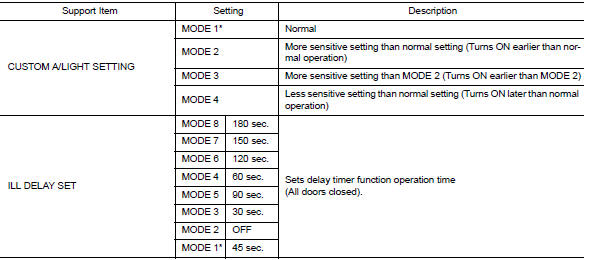

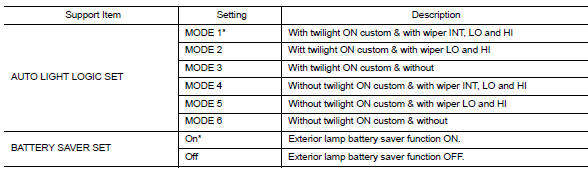

Work support


Work support


*: Initial setting


*: Initial setting

Flasher

Flasher : consult function (bcm - flasher)

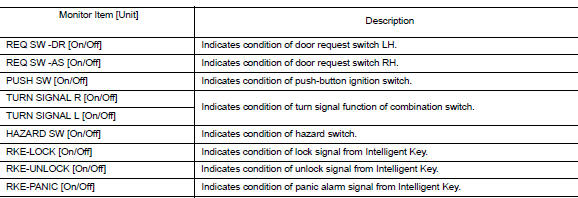

Data monitor

Active test


Active test

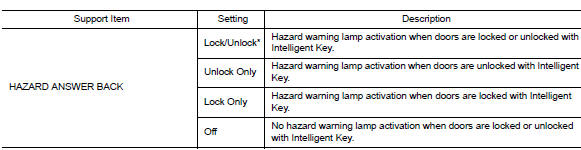

Work support


Work support

* : Initial setting


* : Initial setting
