Nissan Sentra Service Manual: Diagnosis system (BCM)

Common item

Common item : consult function (bcm - common item)

APPLICATION ITEM

CONSULT performs the following functions via CAN communication with BCM.

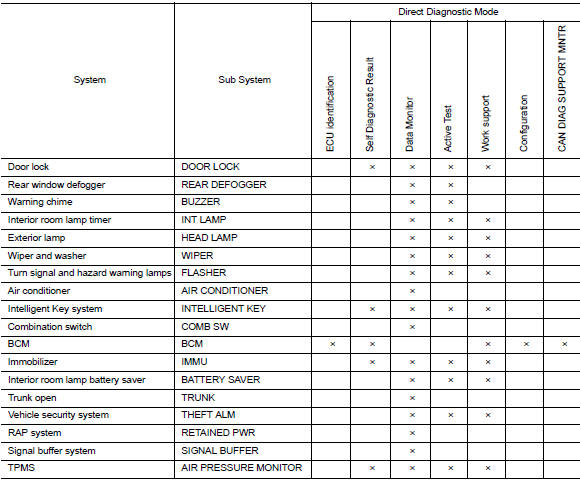

SYSTEM APPLICATION

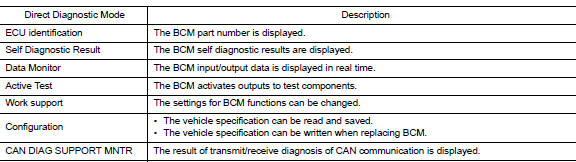

SYSTEM APPLICATION

BCM can perform the following functions.

Intelligent key


Intelligent key

Intelligent key : consult function (bcm - intelligent key)

SELF DIAGNOSTIC RESULT

Refer to BCS-49, "DTC Index".

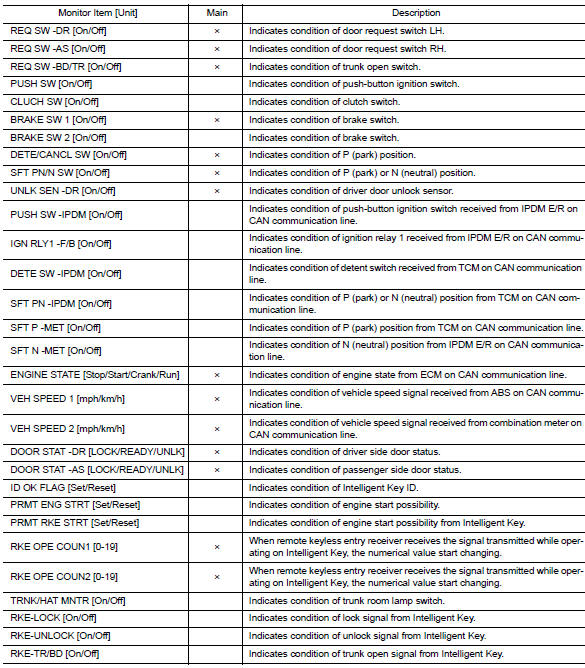

DATA MONITOR

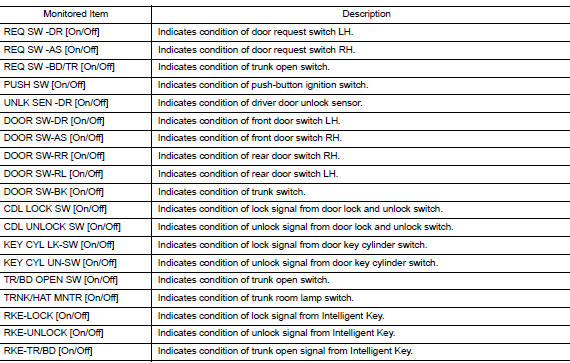

ACTIVE TEST

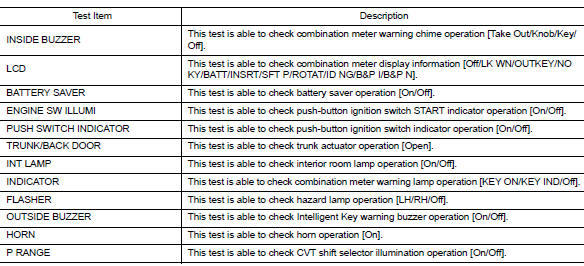

ACTIVE TEST

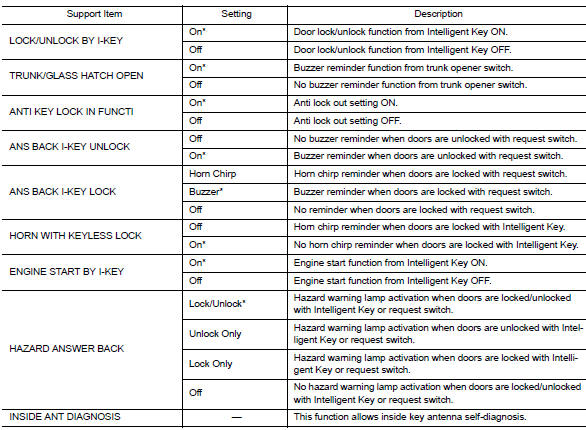

WORK SUPPORT


WORK SUPPORT

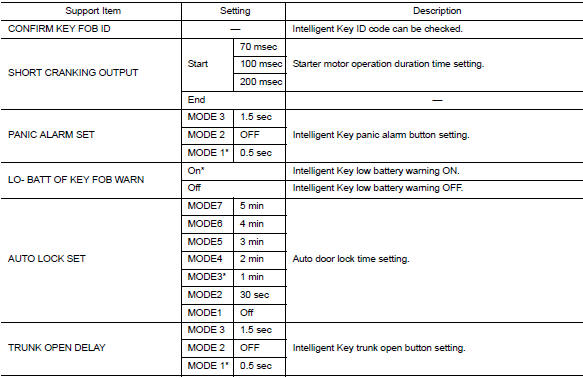

*: Initial Setting


*: Initial Setting

Immu

IMMU : CONSULT Function (BCM - IMMU)

SELF DIAGNOSTIC RESULT

Refer to BCS-49, "DTC Index".

DATA MONITOR

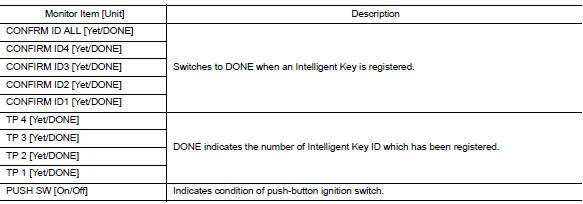

ACTIVE TEST


ACTIVE TEST

WORK SUPPORT


WORK SUPPORT

Theft alm


Theft alm

Theft ALM : consult function (bcm - theft)

DATA MONITOR

ACTIVE TEST


ACTIVE TEST

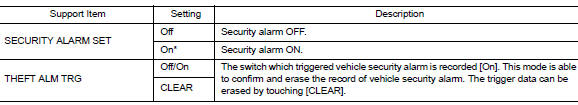

WORK SUPPORT


WORK SUPPORT

*: Initial setting


*: Initial setting

System description
