Nissan Sentra Service Manual: Diagnosis system (BCM)
Common item
COMMON ITEM : CONSULT Function (BCM - COMMON ITEM)
Application item
Consult performs the following functions via can communication with bcm.

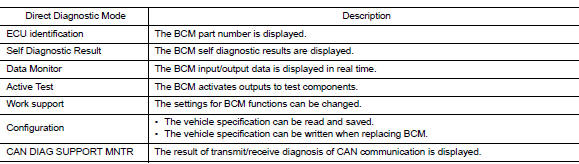

System application
BCM can perform the following functions.

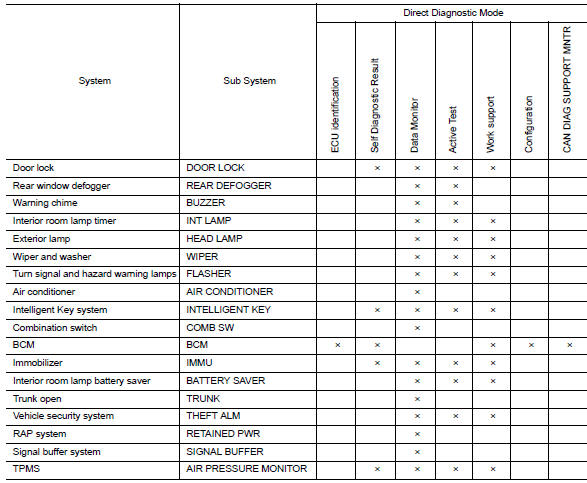

Door lock
Door lock : consult function (bcm - door lock)
Data monitor

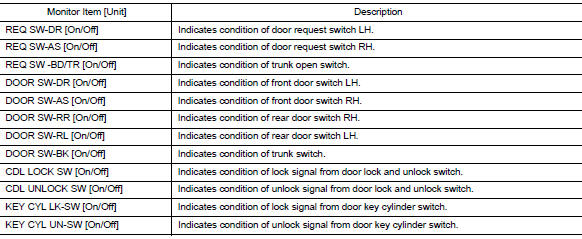

Active test

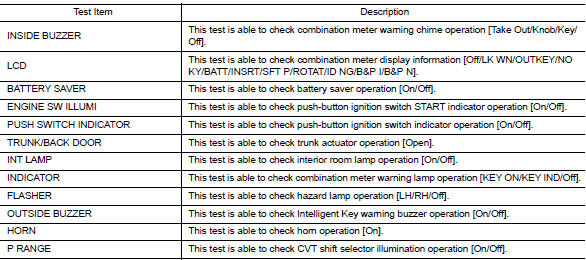

Work support
*: Initial setting
Intelligent key
Intelligent key : consult function (bcm - intelligent key)
Self diagnostic result
Refer to bcs-49, "dtc index".
Data monitor

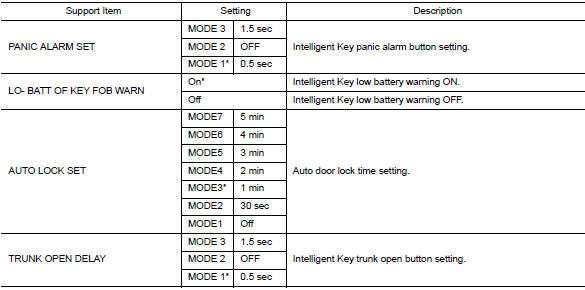

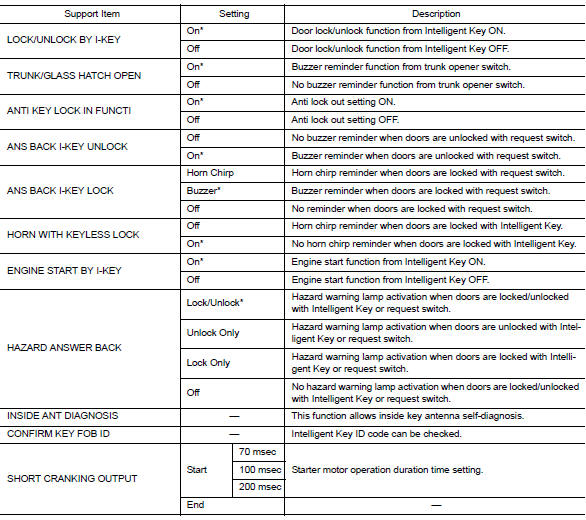

Work support
*: Initial setting
Trunk
TRUNK : CONSULT Function (BCM - TRUNK)
Data monitor
System description
Component parts
POWER DOOR LOCK SYSTEM
POWER DOOR LOCK SYSTEM : Component Parts Location
BCM (view with instrument panel removed)
Front door switch LH
Front door lock actuator LH
Fron ...
ECU diagnosis information
BCM
List of ecu reference
...
Other materials:
P0101, P0102, P0103 MAF Sensor
DTC Logic
DTC DETECTION LOGIC
DTC No.
CONSULT screen terms
(Trouble diagnosis content)
DTC detecting condition
Possible cause
P0101
MAF SEN/CIRCUIT-B1
(Mass or volume air flow “A”
circuit range/performance)
An excessively high voltage from the mass ...
Diagnosis and repair work flow
Work Flow
OVERALL SEQUENCE
DETAILED FLOW
1.COLLECT INFORMATION FROM THE CUSTOMER
Get detailed information from the customer about the symptom
(the condition and the environment when the
incident/malfunction occurred) using the diagnostic worksheet. Refer to BRC-52,
"Diagnostic Wor ...
