Nissan Sentra Service Manual: C1704, C1705, C1706, C1707 Low tire pressure
DTC Logic
NOTE:
The Signal Tech II Tool (J-50190) can be used to perform the following functions. Refer to the Signal Tech II User Guide for additional information.
- Activate and display TPMS transmitter IDs
- Display tire pressure reported by the TPMS transmitter
- Read TPMS DTCs
- Register TPMS transmitter IDs

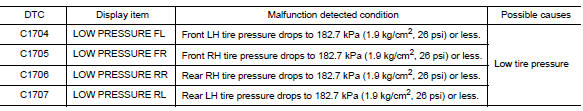

DTC DETECTION LOGIC
DTC CONFIRMATION PROCEDURE
1.PERFORM SELF DIAGNOSTIC RESULT
With CONSULT
- Turn the ignition switch ON.
- Check the tire pressure for all wheels and adjust to the specified value. Refer to WT-54, "Tire Air Pressure".
- Perform “SELF DIAGNOSTIC RESULT”.
Is DTC “C1704”, “C1705”, “C1706”, or “C1707” detected? YES >> Proceed to WT-25, "Diagnosis Procedure".
NO >> Inspection End.
Diagnosis Procedure
NOTE:
The Signal Tech II Tool (J-50190) can be used to perform the following functions. Refer to the Signal Tech II User Guide for additional information.
- Activate and display TPMS transmitter IDs
- Display tire pressure reported by the TPMS transmitter
- Read TPMS DTCs
- Register TPMS transmitter IDs
1.CHECK DATA MONITOR
With CONSULT
- Drive for 3 minutes at a speed of 40 km/h (25 MPH) or more, then drive normally for 10 minutes.
- Stop the vehicle.
- On “DATA MONITOR” select “AIR PRESS FL”, “AIR PRESS FR”, “AIR PRESS RR” and “AIR PRESS RL”..
- Within 5 minutes after vehicle stopped, check that the tire pressures are within specification. Refer to WT- 54, "Tire Air Pressure".
| Monitor item | Displayed value |
| AIR PRESS FL | Approximately equal to value indicated on tire gauge for front LH tire |
| AIR PRESS FR | Approximately equal to value indicated on tire gauge for front RH tire |
| Monitor item | Displayed value |
| AIR PRESS RR | Approximately equal to value indicated on tire gauge for rear RH tire |
| AIR PRESS RL | Approximately equal to value indicated on tire gauge for rear LH tire |
Is the inspection result normal? YES >> Inspection End.
NO >> Repair or replace malfunctioning components.
C1708, C1709, C1710, C1711 Transmitter (no data)
DTC Logic
NOTE:
The Signal Tech II Tool (J-50190) can be used to perform the following
functions. Refer to the Signal Tech II
User Guide for additional information.
Activate and display TPMS ...
