Nissan Sentra Service Manual: Blower motor

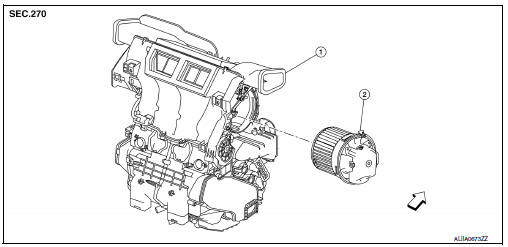

Exploded View
- Heating and cooling unit assembly
- Blower motor
Front
Removal and Installation
- Remove the glove box assembly. Refer to IP-22, "Removal and Installation".
- Disconnect the harness connector from the blower motor.
- Remove the blower motor screws.
- Remove the blower motor.
INSTALLATION
Installation is in the reverse order of removal.
Ducts and grilles
Exploded View
Heating and cooling unit assembly
Center ventilator duct
Defroster duct
Side ventilator duct (LH)
Front floor duct (LH)
Rear floor connecting duct (LH)
Rear floor duc ...
