Nissan Sentra Service Manual: Wiring diagram

Ecu diagnosis information

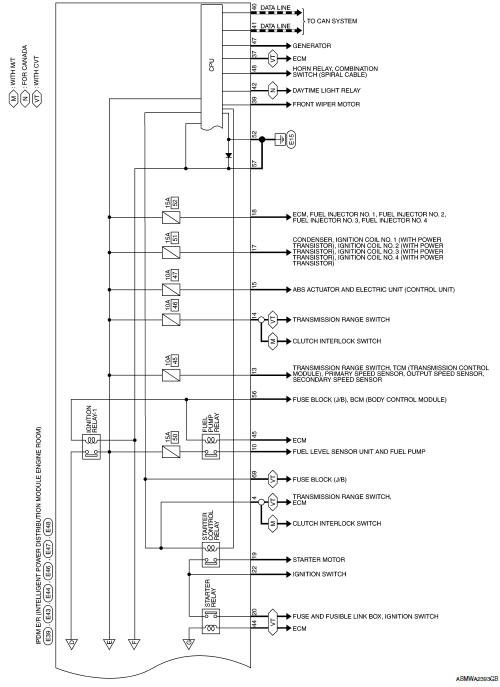

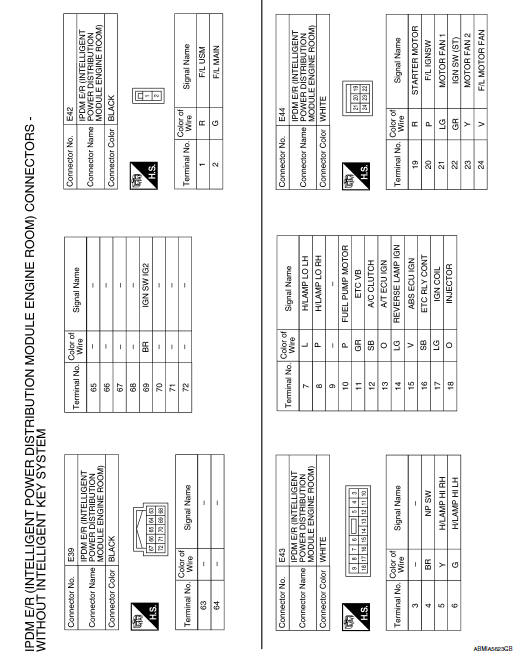

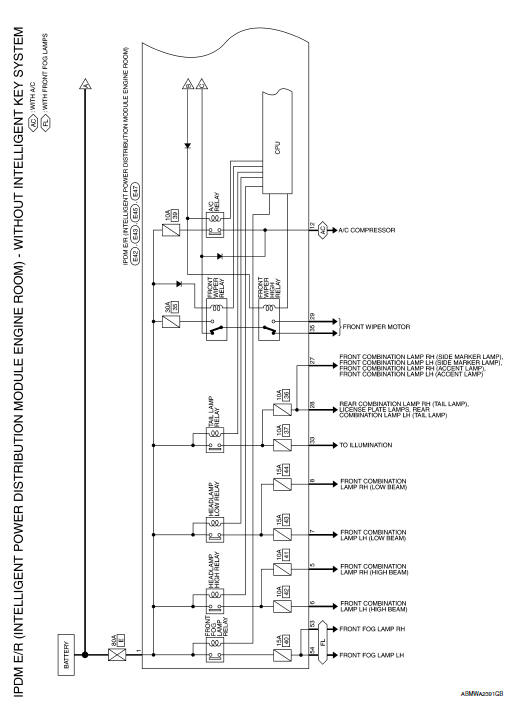

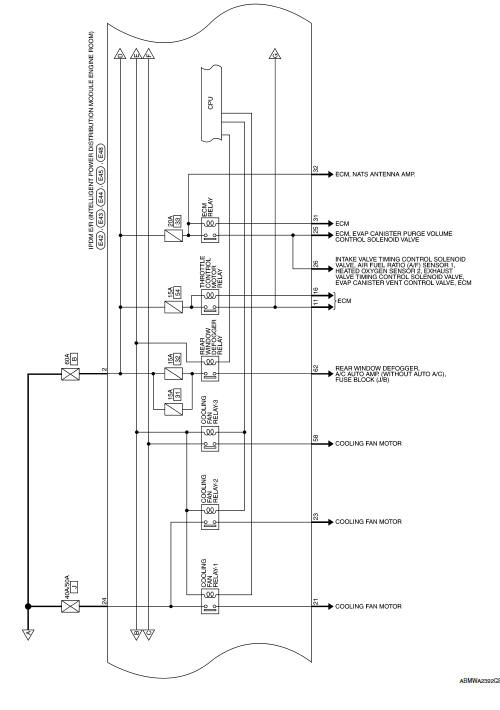

Ipdm e/r (intelligent power distribution module engine room) Reference Value Values on the diagnosis tool Terminal layout Physical values Fail-Safe Can communic ...

Dtc/circuit diagnosis

U1000 can comm circuit Description Refer to LAN-7, "CAN COMMUNICATION SYSTEM : System Description". Dtc logic Dtc detection logic Consult display Dtc detection condition P ...
