Nissan Sentra Service Manual: Wiring diagram

Can system

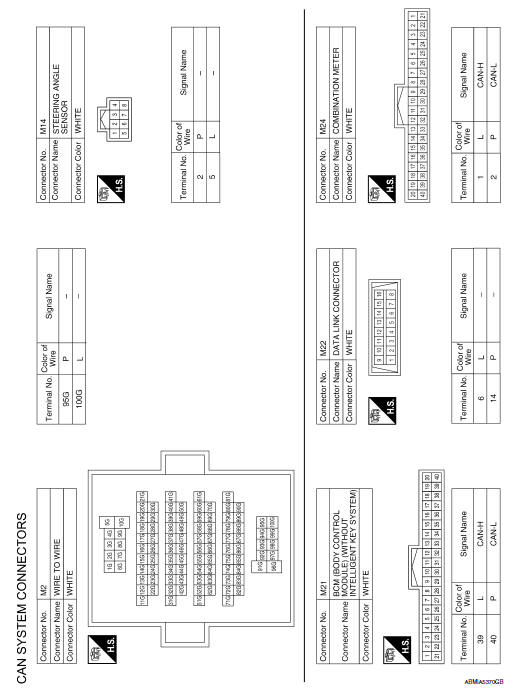

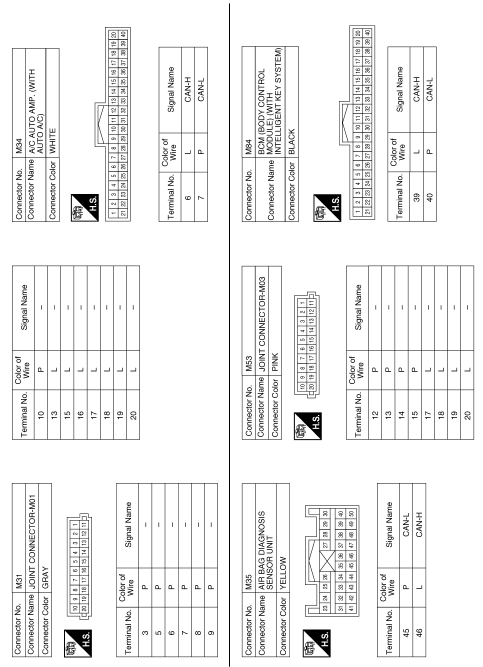

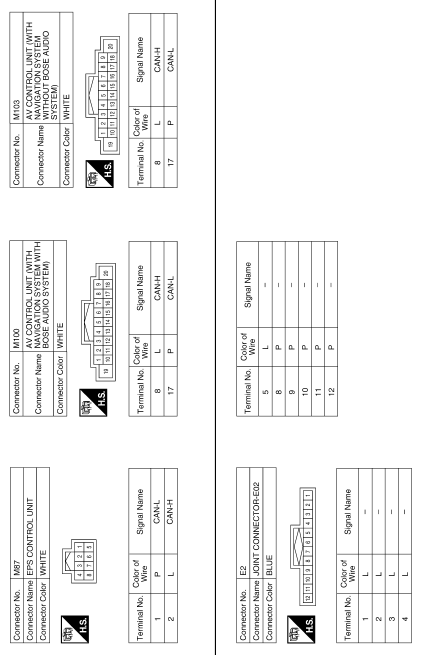

Wiring Diagram






Basic inspection


System description
Component parts Component parts location ABS actuator and electric unit (control unit) Av control unit A/c auto amp. Ecm Ipdm e/r Tcm Data link connector EPS control unit Bc ...

Basic inspection
Diagnosis and repair workflow Interview sheet Note: Refer to LAN-16, "Trouble Diagnosis Procedure" for how to use interview sheet. ...
