Nissan Sentra Service Manual: Wiper and washer system symptoms

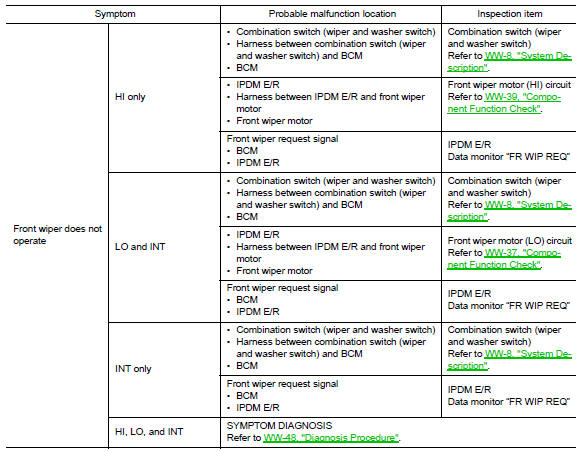

Symptom table
Caution:
Perform the self-diagnosis with consult before performing the diagnosis by symptom. Perform the diagnosis by dtc if dtc is detected.
Front wiper does not operate
Description
The front wiper does not operate under any operation conditions
Diagnosis procedure
Regarding wiring diagram information, refer to ww-24, "wiring diagram - with
intelligent key&q ...
