Nissan Sentra Owners Manual: Tachometer

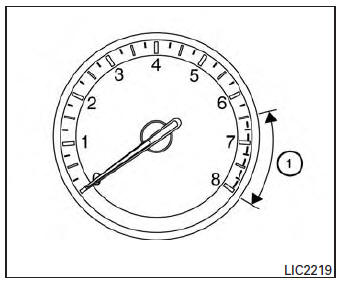

The tachometer indicates engine speed in revolutions per minute (rpm). Do not rev engine into the red zone 1 .
CAUTION
When engine speed approaches the red zone, reduce engine speed. Operating the engine in the red zone may cause serious engine damage.
Speedometer and odometer
Speedometer
The speedometer indicates the vehicle speed.
Odometer/Twin trip odometer
The odometer 2 and the twin trip odometer 1
are displayed when the ignition switch is placed
in the ON p ...
Engine coolant temperature gauge
NOTE:
The ignition switch must be placed in the
ON position for the gauge to give a reading.
The gauge indicates the engine coolant temperature.
The engine coolant temperature is within the
...
