Nissan Sentra Service Manual: Symptom diagnosis
CVT CONTROL SYSTEM

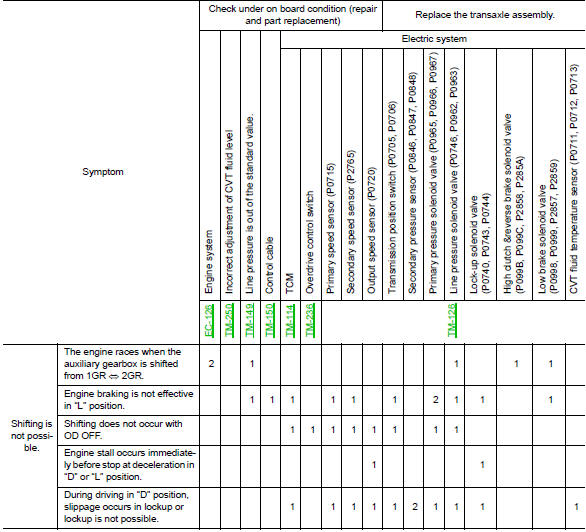

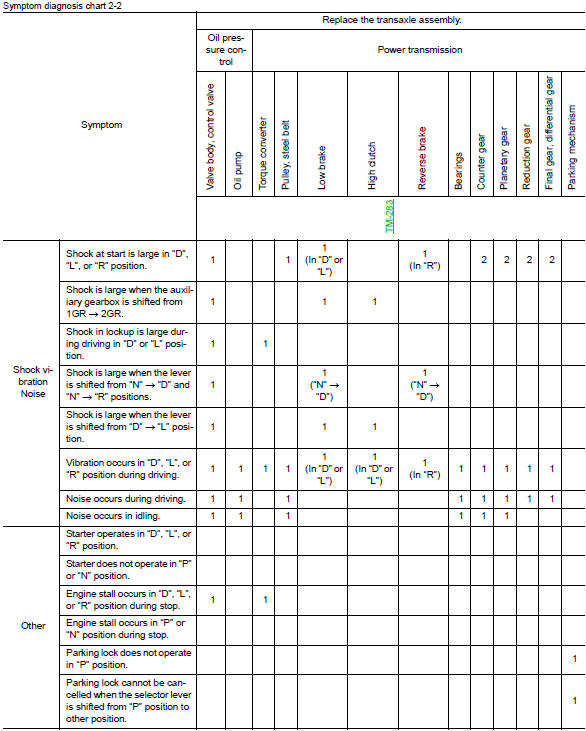

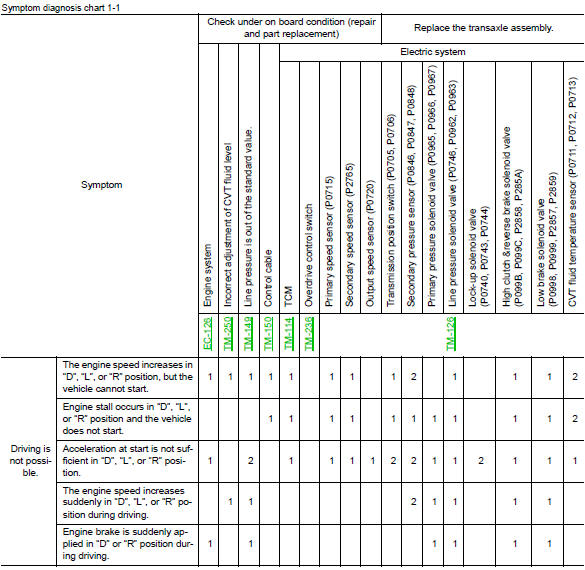

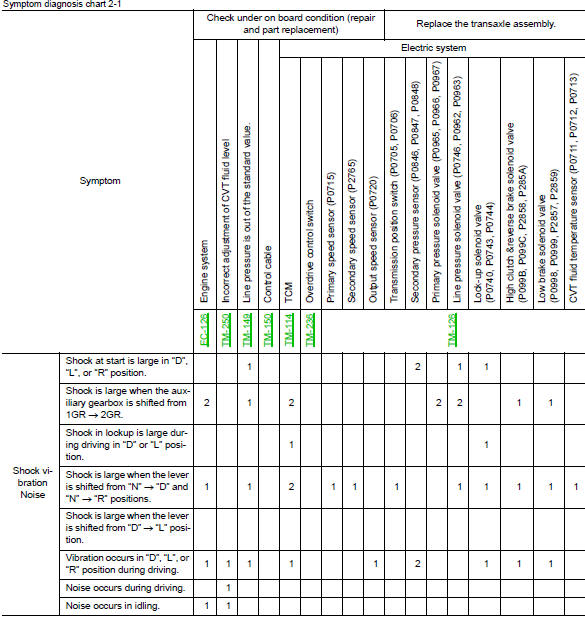

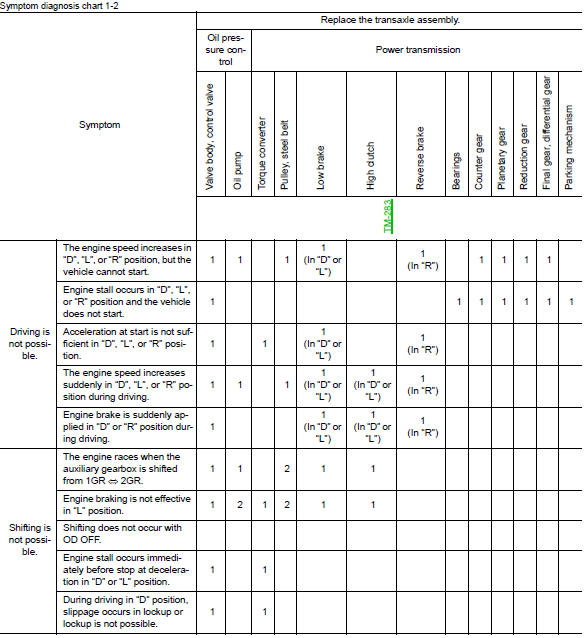

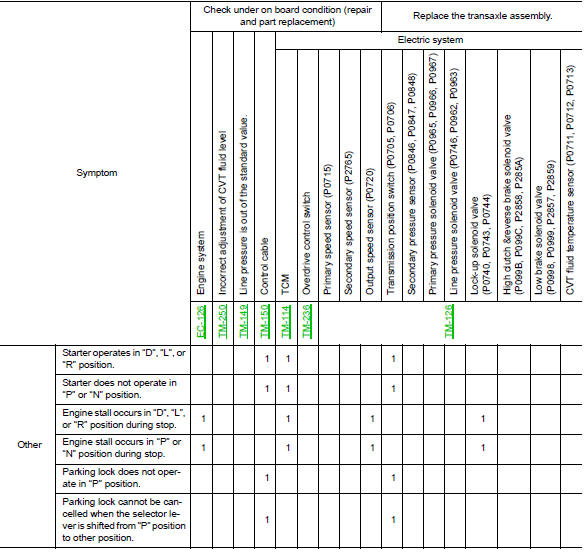

Symptom Table
The diagnosis item number indicates the order of check. Start checking in the order from 1.
