Nissan Sentra Service Manual: Symptom diagnosis
Combination switch system symptoms

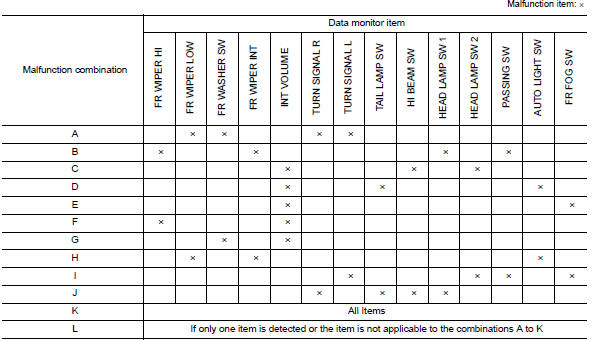

Symptom Table
- Perform the data monitor of consult to check for any malfunctioning item.
- Check the malfunction combinations.

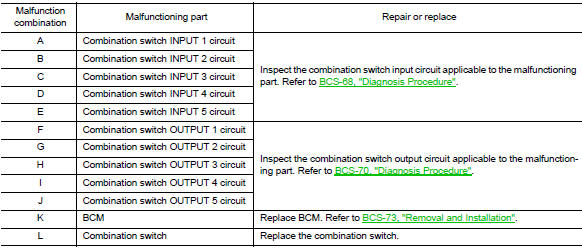

- Identify the malfunctioning part from the agreed combination and repair or replace the part.
Dtc/circuit diagnosis
U1000 can comm circuit
Description
Refer to LAN-7, "CAN COMMUNICATION SYSTEM : System Description".
Dtc logic
DTC DETECTION LOGIC
NOTE:
U1000 can be set if a module harness was discon ...
Removal and installation
BCM
Removal and installation
Note:
Before replacing BCM, perform “READ CONFIGURATION” to save or print
current vehicle specification. Refer
to BCS-61, "CONFIGURATION (BCM) : Descr ...
