Nissan Sentra Service Manual: Sport mode control
SPORT MODE CONTROL : System Description

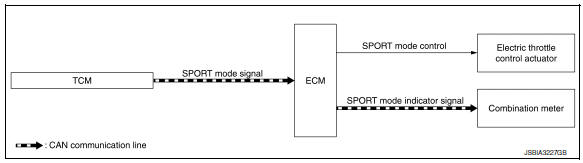

SYSTEM DIAGRAM
SYSTEM DESCRIPTION
- SPORT mode that keeps high engine revolution and provides direct feel and acceleration performance suitable for driving on winding road.
- ECM receives an SPORT mode signal from TCM via CAN communication and improves drivability by controlling the throttle movement.
- ECM transmits an SPORT mode indicator lamp signal to the combination meter via CAN communication.
NOTE:
For the details of the SPORT mode, refer to DMS-63, "SPORT MODE CONTROL : System Description" (CVT models) or DMS-43, "SPORT MODE CONTROL : System Description" (M/T models).
Eco mode control
ECO MODE CONTROL : System Description
SYSTEM DIAGRAM
SYSTEM DESCRIPTION
ECM receives an ECO mode signal from combination meter via CAN
communication and improves the fuel
economy by con ...
Operation
...
