Nissan Sentra Service Manual: Service data and specifications (SDS)

Nissan Sentra Service Manual / Brakes / Brake system / Service data and specifications (SDS)

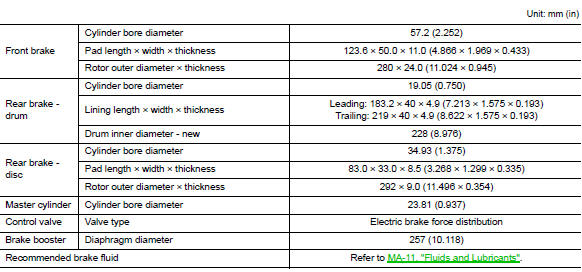

General Specifications

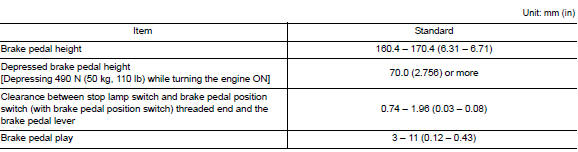

Brake Pedal


Brake Pedal

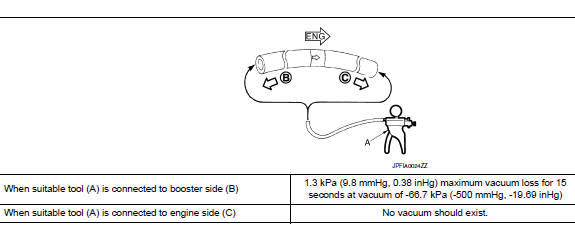

Check Valve


Check Valve

Brake Booster


Brake Booster

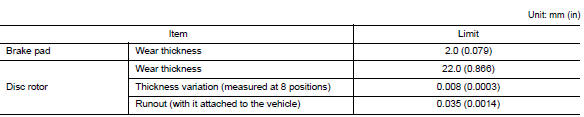

Front Disc Brake


Front Disc Brake

Rear Drum Brake


Rear Drum Brake

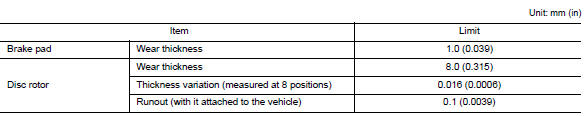

Rear Disc Brake


Rear Disc Brake

Parking brake system


Rear disc brake
Exploded View Sliding pin bolt Bushing Cap Bleeder valve Cylinder body Piston seal Piston Piston boot Sliding pin boot Torque member Apply rubber grease Apply brake flui ...

Parking brake system
...
