Nissan Sentra Service Manual: Service data and specifications (SDS)

Nissan Sentra Service Manual / Transmission & driveline / Transaxle & transmission / Service data and specifications (SDS)

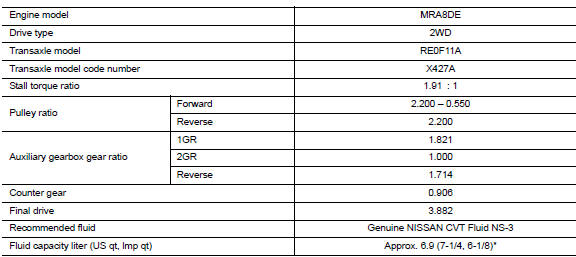

General Specification

CAUTION:

CAUTION:

Use only Genuine NISSAN CVT Fluid NS-3. Never mix with other fluid.
Use only Genuine NISSAN CVT Fluid NS-3. Using transmission fluid other than Genuine NISSAN CVT Fluid NS-3 will damage the CVT, which is not covered by the warranty.

*: The CVT fluid capacity is the reference value.

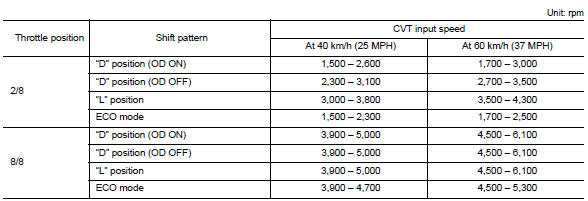

Shift Characteristics

NOTE:

NOTE:

Lock-up is engaged at the vehicle speed of approximately 10 km/h (11 MPH) to 90 km/h (56 MPH).

Stall Speed

Line Pressure

Line Pressure

Torque Converter

Torque Converter

Heater Thermostat

Heater Thermostat
