Oil pressure

*: Engine oil temperature at 80В°C (176В°F)

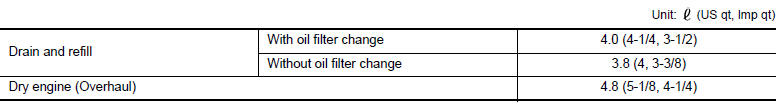

Oil Capacity

Unit disassembly and assemblySpark plug
Exploded View
Ignition coil
Spark plug
Rocker cover
Removal and Installation
REMOVAL
Remove engine cover. Refer to EM-24, "Exploded View".
Remove ignition coil. Refer to EM-46, "Exploded View".
Remove spark plug using suitable tool.
(a) : 14 mm (0.55 in ...
C1604 Torque sensor
DTC Logic
DTC DETECTION LOGIC
DTC
Display item
Malfunction detected condition
Possible cause
C1604
TORQUE SENSOR
When torque sensor output signal is malfunctioning
Harness or connector
Torque sensor
EPS control unit
DTC CONFIRMATION ...
Unit disassembly and assembly
OIL PUMP
O-ring
Oil pan (upper)
Oil level gauge guide
O-ring
Oil level gauge
Oil pump chain tensioner
Oil pump drive chain
Crankshaft sprocket
Oil pump sprocket
Oil pump
Drain plug washer
Drain plug
Oil pan (lower)
Oil filter
Connector bolt
Crankshaft position s ...
