Nissan Sentra Service Manual: Rear window defogger relay
Description
Power is supplied to the rear window defogger with BCM control.
Component Function Check
1. Check rear window defogger relay power supply circuit
- Turn ignition switch ON.
- Check that an operation noise of rear window defogger relay (located in IPDM E/R) can be heard when turning the rear window defogger switch ON.
Is the inspection result normal? Yes >> rear window defogger relay power supply circuit is ok.
No >> refer to def-32, "diagnosis procedure".
Diagnosis Procedure
Regarding wiring diagram information, refer to def-20, "wiring diagram".
1.Check fuses
Check if any of the following fuses in the ipdm e/r are blown.
Is the inspection result normal? Yes >> go to 2
No >> replace the fuse after repairing the affected circuit.
2. Check rear window defogger relay power supply circuit
- Turn ignition switch on.

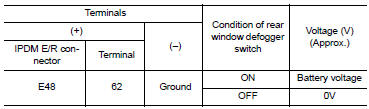

- Check voltage between IPDM E/R connector E48 terminal 62 and ground.
Is the inspection result normal? Yes >> go to 3
No >> replace ipdm e/r. Refer to pcs-30, "removal and installation" (with intelligent key system) or pcs-58, "removal and installation" (without intelligent key system).
3. Check intermittent incident
Check intermittent incident.
Refer to gi-39, "intermittent incident" is the inspection result normal? Yes >> check the following:
- Battery power supply circuit.
- Ipdm e/r.
No >> repair or replace the malfunctioning parts.
Rear window defogger switch
Description
The rear window defogger is operated by pressing the rear window
defogger switch ON.
The indicator lamp in the rear window defogger switch illuminates while
the rear window def ...
