Description

Replace the O-ring if oil leakage or exudes from the plug.

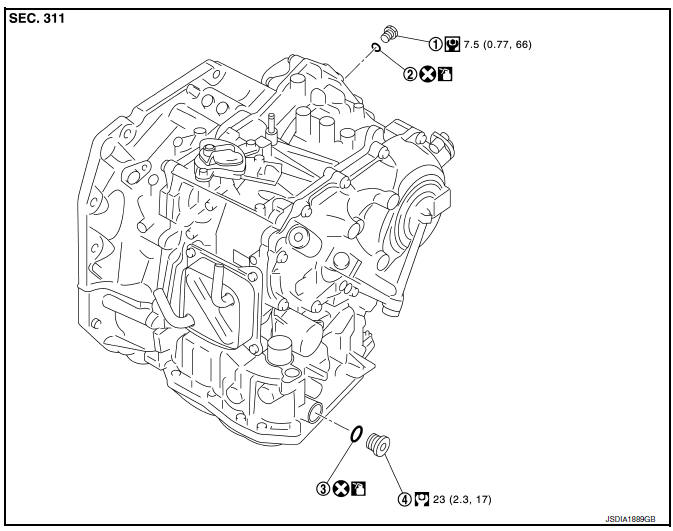

Exploded View

Plug
O-ring
O-ring
Plug

: Always replace after every
disassembly.

: NВ·m (kg-m, in-lb) : NВ·m (kg-m, ft-lb)

: Genuine NISSAN CVT Fluid NS-3 : NВ·m (kg-m, in-lb)

Removal and Installation : Genuine NISSAN CVT Fluid NS-3

Removal and Installation

NOTE:

Replace the O-rings if oil leaks or exudes from the plugs.

REMOVAL

Remove the plugs and O-rings.

INSTALLATION

Installation is in the reverse order of removal.

CAUTION:

Do not reuse O-ring.
Apply Genuine NISSAN CVT Fluid NS-3 to O-ring.

Inspection and Adjustment

INSPECTION AFTER INSTALLATION

Start the engine and check visually that there is no leakage of CVT fluid.

ADJUSTMENT AFTER INSTALLATION

AdjustCVT fluid level. Refer to TM-251, "Adjustment".
