Nissan Sentra Owners Manual: Map lights

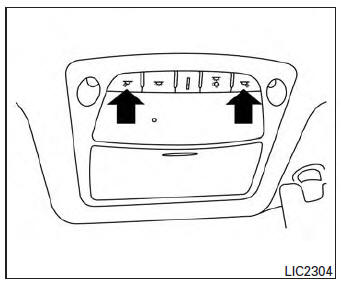

Push the button to turn the map lights on. To turn them off, press the button again.
CAUTION
Do not use for extended periods of time with the engine stopped. This could result in a discharged battery.
Dome light
The interior light has a three-position switch and
operates regardless of ignition switch position.
When the switch is in the ON position 1 , the
interior lights illuminate, regardless of door ...
Trunk light
The light illuminates when the trunk lid is opened.
When the trunk lid is closed, the light goes off.
The light will go off after a period of time if the
trunk lid is left open, unless the igni ...
