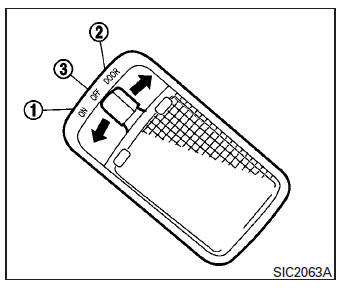

The interior light has a three-position switch and operates regardless of ignition switch position.
When the switch is in the ON position 1 , the interior lights illuminate, regardless of door position.
The lights will go off after a period of time unless the ignition switch is placed in the ACC or ON position.
When the switch is in the DOOR position 2 , the interior lights will stay on for a period of time when:
The lights will turn off while the timer is activated when:
When the switch is in the OFF position 3 , the interior lights do not illuminate, regardless of door position.
The lights will turn off automatically after a period of time while doors are open to prevent the battery from becoming discharged.
CAUTION
Do not use for extended periods of time with the engine stopped. This could result in a discharged battery.
Interior lights
Map lightsRemoval and installation
Generator
Exploded view
Thermostat housing
Generator bolt (upper)
Generator bolt (lower)
Generator
B” terminal harness
“B” terminal nut
Generator harness connector
Front
Removal and installation
Note:
When removing components such as hoses,tubes\lines,etc,ca ...
Main line between dlc and av circuit
Diagnosis procedure
1.Check harness continuity (open circuit)
Turn the ignition switch off.
Disconnect the battery cable from the negative terminal.
Disconnect the following harness connectors.
ECM
AV control unit
Check the continuity between the data link connector and the av ...
Water outlet
Exploded View
CVT MODELS
Water control valve
Rubber ring
Radiator hose (upper)
Clamp
Water outlet
CVT oil warmer hose (outlet)
Heater hose (inlet)
Heater hose (outlet)
Electric throttle control actuator hose
(outlet)
Electric throttle control actuator hose
(inlet)
E ...
