Symptom Table

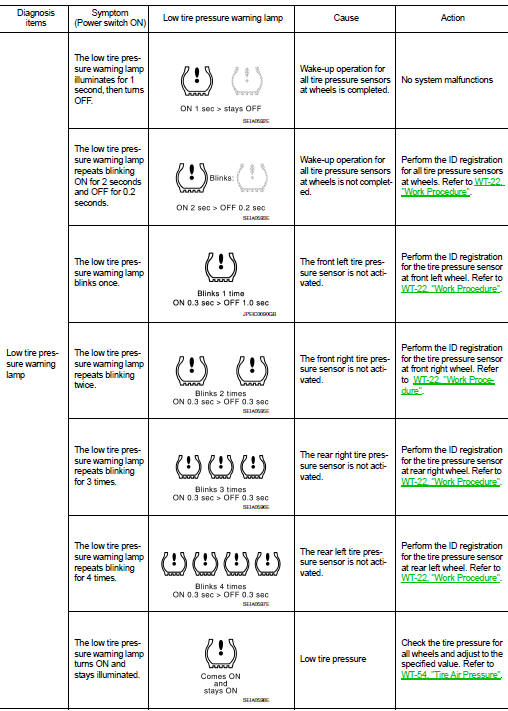

Low tire pressure warning lamp symptom chart

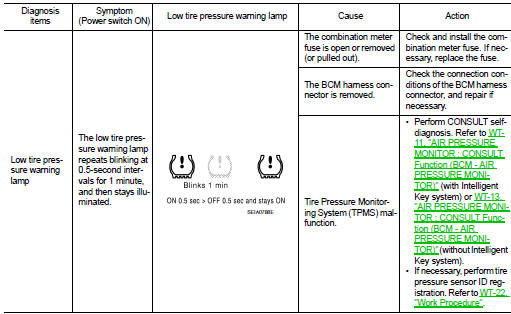

Note:
If tire pressure sensor wake-up operation is not completed for two or more tire pressure sensors, the applicable low tire pressure warning lamp blinking patterns are displayed continuously.
(Example: blinks once/off/blinks 3 times = wake-up operation is not completed at the front left wheel and rear right wheel tire pressure sensors.)
TPMS symptoms
Low tire pressure warning lamp does not turn onIpdm-e branch line circuit
Diagnosis procedure
1.Check connector
Turn the ignition switch off.
Disconnect the battery cable from the negative terminal.
Check the terminals and connectors of the ipdm e/r for damage, bend and
loose connection (unit side
and connector side).
Is the inspection result normal?
