Nissan Sentra Service Manual: Component parts
Meter system

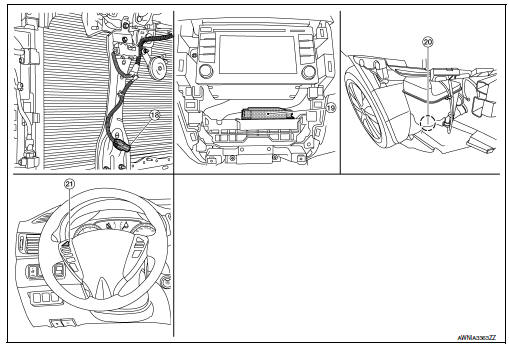

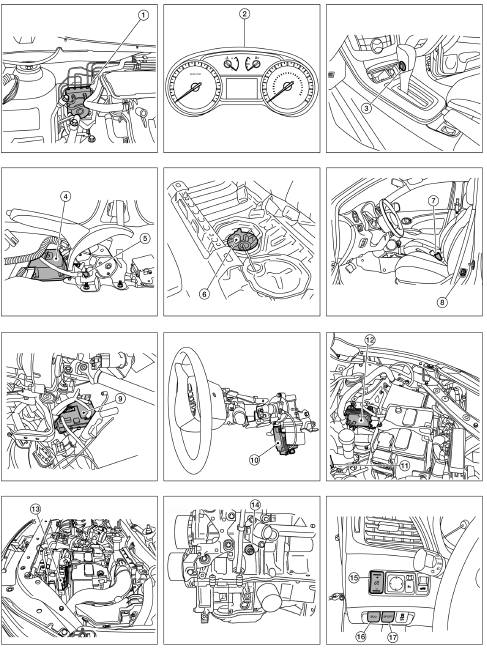

METER SYSTEM : Component Parts Location
- ABS actuator and electric unit (control unit)
- Combination meter
- CVT shift selector (with CVT) (O/D OFF switch)
- Air bag diagnosis sensor unit (view with center console assembly removed)
- Parking brake switch (view with center console removed)
- Fuel level sensor unit and fuel pump (view with fuel pump inspection cover removed)
- Seat belt buckle switch LH (RH similar)
- Front door switch LH (RH similar)
- BCM (view with instrument panel removed)
- Power steering control module (view with steering column assembly removed)
- Brake fluid level switch
- TCM (with CVT)
- ECM
- Engine oil pressure sensor
- Illumination control switch
- ECO mode switch (with CVT)
- Sport mode switch (with CVT)
- Ambient sensor
- A/C auto amp.
(with auto A/C) (view with A/C switch assembly removed)
- Washer fluid level switch (view with front fascia removed)
- Steering switch

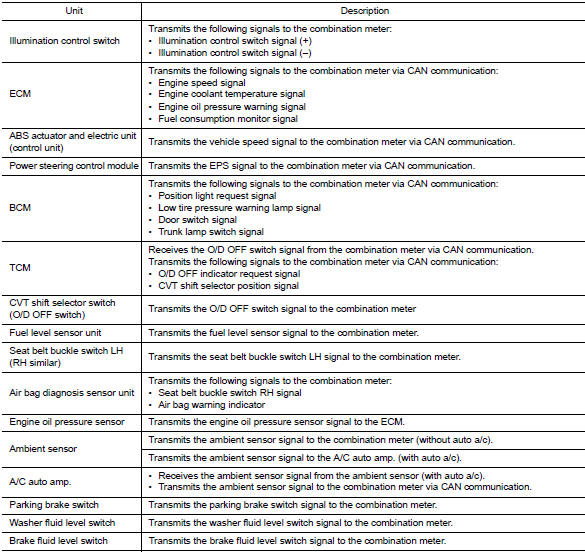

METER SYSTEM : Component Description
System
Meter system
Meter system : system diagram
Meter system : system description

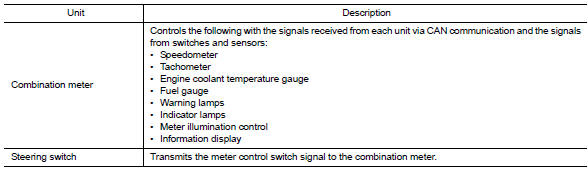

COMBINATION METER
The combination meter receives signals from switches, sensors and modules to
control the foll ...
