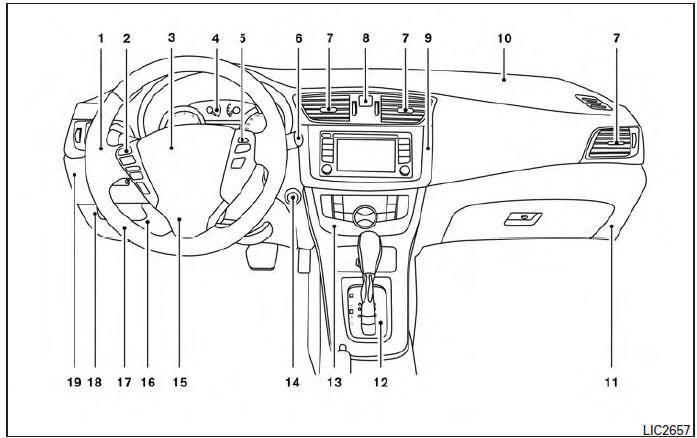

Nissan Sentra Owners Manual: Instrument panel
- Headlight/fog light (if so equipped)/turn signal switch
- Steering wheel switch for trip computer, audio control and Bluetooth® Hands-Free Phone System (if so equipped)
- Driver’s supplemental air bag/Horn
- Meters and gauges
- Cruise control main/set switches (if so equipped)
- Windshield wiper/washer switch
- Ventilator
- Hazard warning flasher switch
- Audio system
- Passenger’s supplemental air bag
- Glove box
- Shift lever
- Climate control
- Ignition switch (if so equipped)
- Telescopic steering
- Hood release
- Fuel filler door release
- ECO mode switch (P. 5-22); SPORT mode switch (P.5-22); Vehicle Dynamic Control (VDC) OFF switch
- Instrument brightness control. Power mirror switch. Trunk release
* Refer to the separate Navigation System Owner’s Manual (if so equipped).
See the page number indicated in parentheses for operating details.
Meters and gauges
Engine coolant temperature gauge
Fuel gauge
Speedometer
Odometer/twin trip odometer/trip
computer/fuel economy/Eco Pedal Indicator
Tachometer
...
