Nissan Sentra Owners Manual: How to read the displayed lines

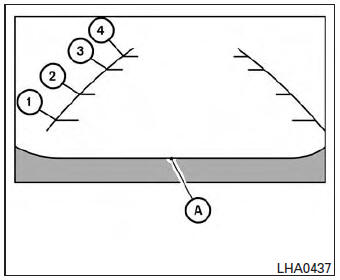

Guiding lines which indicate the vehicle width and distances to objects with reference to the vehicle body line A are displayed on the monitor.
Distance guide lines:
Indicate distances from the vehicle body.
- Red line 1 : approx. 1.5 ft (0.5 m)
- Yellow line 2 : approx. 3 ft (1 m)
- Green line 3 : approx. 7 ft (2 m)
- Green line 4 : approx. 10 ft (3 m)

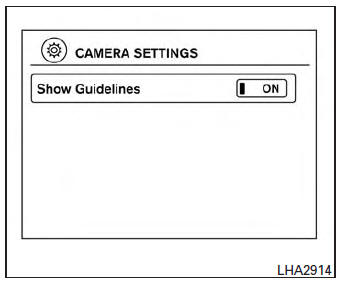

The on-screen guidelines can be set to on or off.
With the shift lever in the R (Reverse) position:
Press the CAMERA button to toggle the feature on and off.
With the shift lever in any position other than the R (Reverse) position:
- Press the CAMERA button.
- Touch the “Show Guidelines” key to toggle the feature on or off.
RearView Monitor (if so equipped)
When the shift lever is shifted into the R (Reverse)
position, the monitor display shows the
view to the rear of the vehicle.
WARNINGFailure to follow the warnings and
instructions
fo ...
Difference between predicted and actual distances
The distance guide line and the vehicle width
guide line should be used as a reference only
when the vehicle is on a level, paved surface. The
distance viewed on the monitor is for reference
only ...
