Nissan Sentra Service Manual: Handling precautions for plastics

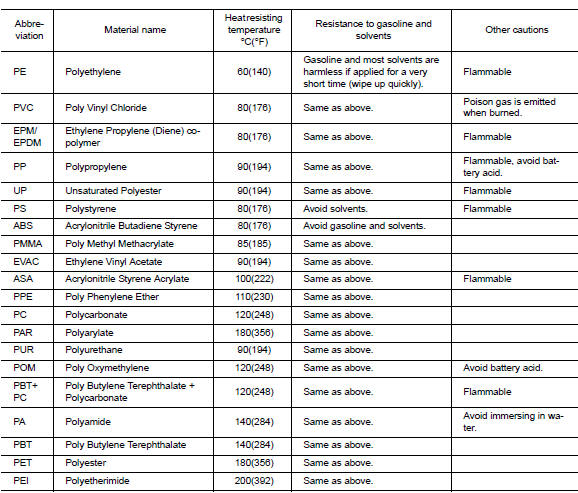

Precautions for plastics
- When repairing and painting a portion of the body adjacent to plastic parts, consider their characteristics (influence of heat and solvent) and remove them if necessary or take suitable measures to protect them.
- Plastic parts should be repaired and painted using methods suiting the materials, characteristics.

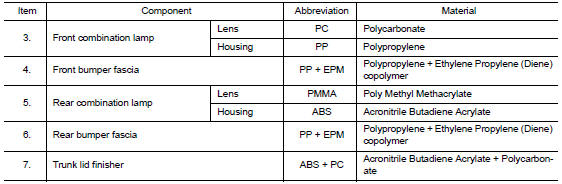

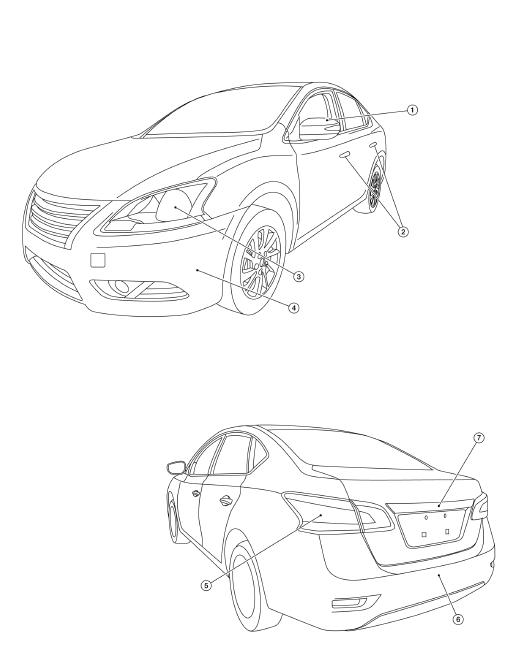

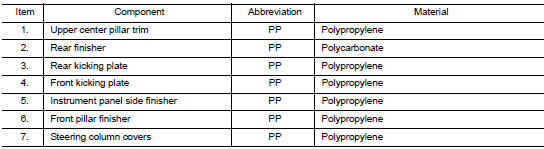

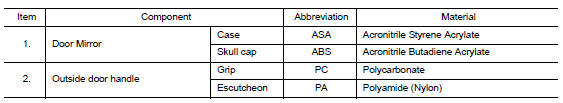

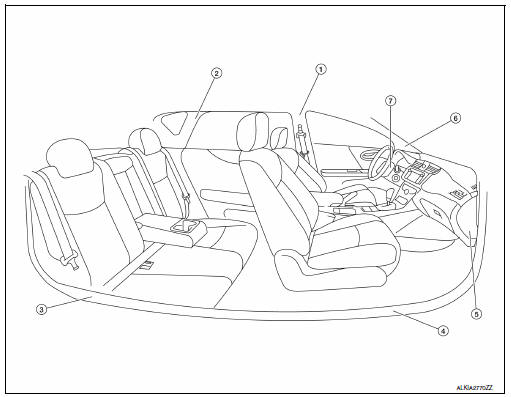

LOCATION OF PLASTIC PARTS
