Nissan Sentra Owners Manual: Glove box

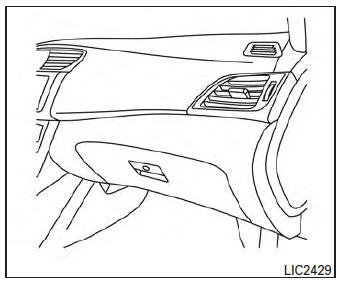

Open the glove box by pulling the handle.
| WARNING Keep glove box lid closed while driving to help prevent injury in an accident or a sudden stop. |
Cup holders
CAUTION
Avoid abrupt starting and braking when
the cup holder is being used to prevent
spilling the drink. If the liquid is hot, it
can scald you or your passenger.
Use only soft cups in t ...
Console box
Console box
To open the console box, press in on the lever 1
and raise the lid 2 .
To close, push the lid down until the lock latches.
...
