Nissan Sentra Service Manual: Glass lid

Nissan Sentra Service Manual / Body exterior, doors, roof & vehicle security / Roof / Removal and installation / Glass lid

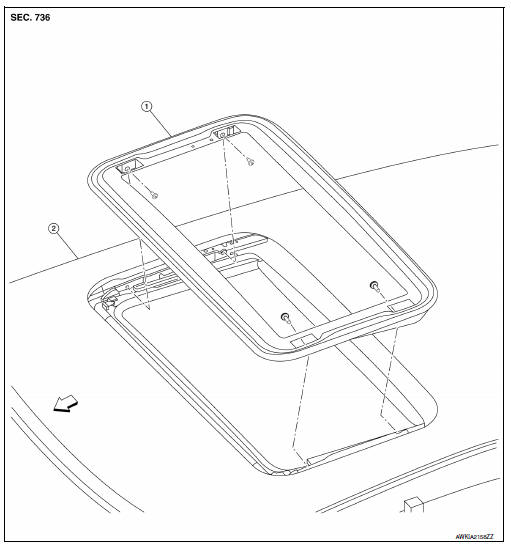

Exploded view

Glass lid
Roof panel

Removal and installation Front

Removal and installation

Removal

Caution:

After installing glass lid, check gap/height adjustments and operation to make sure there is no malfunction.
Handle glass lid with care to prevent damage.

Open sunshade (1), then close glass lid.

Front

Remove glass lid bolts (a) on the lh and rh sides.
Remove glass lid from moonroof unit assembly.

Installation

Installation

Position glass lid to moonroof unit assembly.
Tighten glass lid bolts.

Note:

First tighten the front bolt (lh), then the rear bolt (rh) on the moonroof lid assembly to prevent uneven torque while tightening the remaining the remaining bolts

After installation, check moonroof operation and glass lid alignment. Refer to RF-40, "Adjustment".

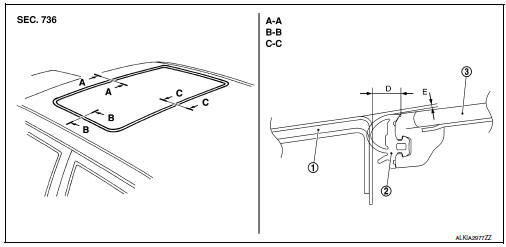

Adjustment

Roof panel
Weatherstrip
Glass lid

Loosen the glass lid bolts.
Adjust the clearance of glass lid and roof panel according to the fitting standard dimension.
First tighten the front bolt (LH), then the rear bolt (RH) on the moonroof lid assembly to prevent uneven torque while tightening the remaining the remaining bolts.
Tilt glass lid up and down several times to check that it moves smoothly.

NOTE:

After adjusting the moonroof unit assembly, perform additional service. Refer to RF-18, "ADDITIONAL SERVICE WHEN REPLACING CONTROL UNIT : Special Repair Requirement".
