Nissan Sentra Service Manual: Function and System Application

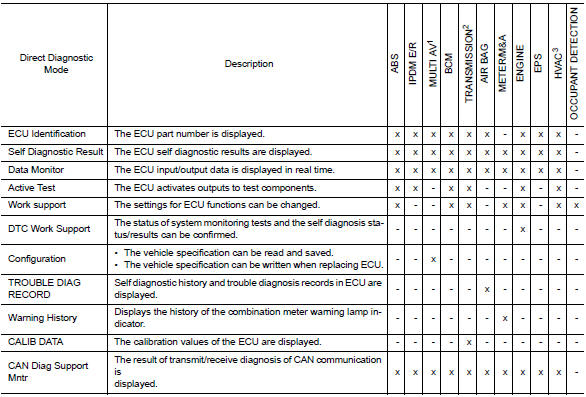

x : Applicable
- With NAVI
- With CVT
- With auto A/C
Description
NOTE:
This vehicle is diagnosed using the CONSULT-III plus.
When CONSULT is connected with a data link connector
equipped on the vehicle side, it will communicate with the control
unit equipp ...
CONSULT Data Link Connector (DLC) Circuit
Inspection procedure
If the CONSULT cannot diagnose the system properly, check the following
items.
Symptom
Check item
CONSULT cannot access any
system.
CONSULT D ...
