Nissan Sentra Service Manual: Ecu diagnosis information
Audio unit
Reference value
Terminal layout

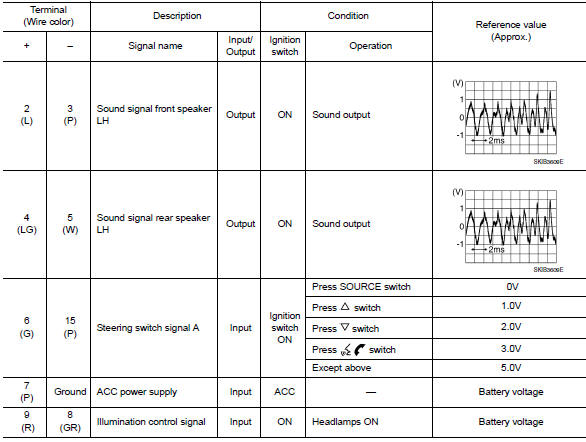

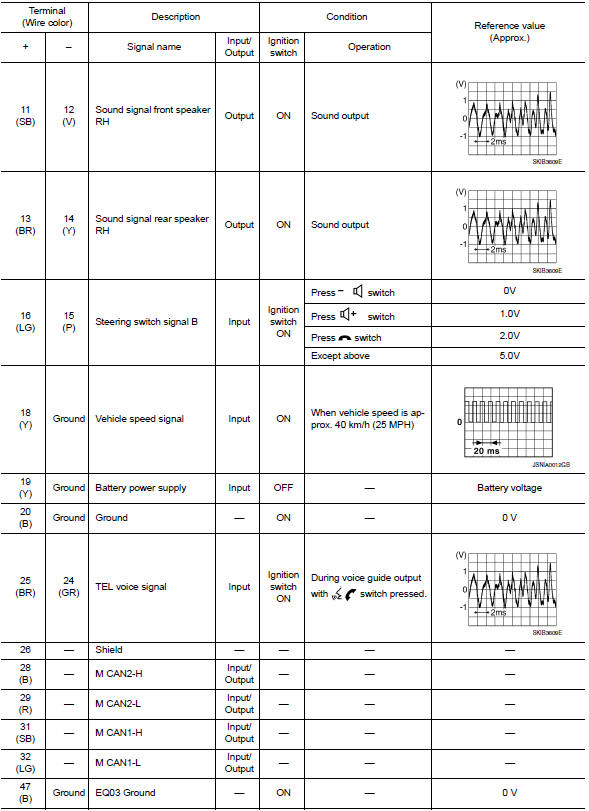

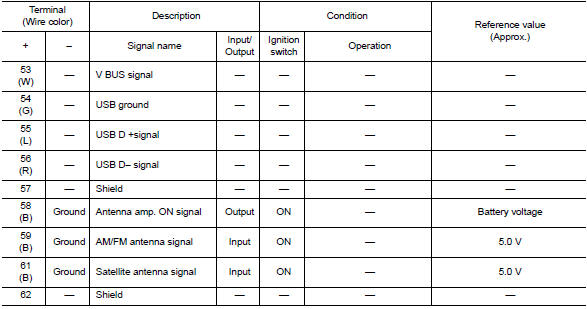

Physical values
BluetoothВ® control unit
Reference Value

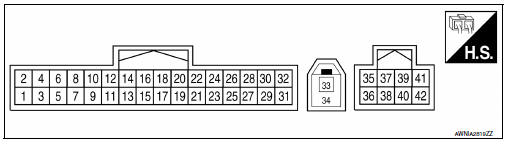

Terminal layout

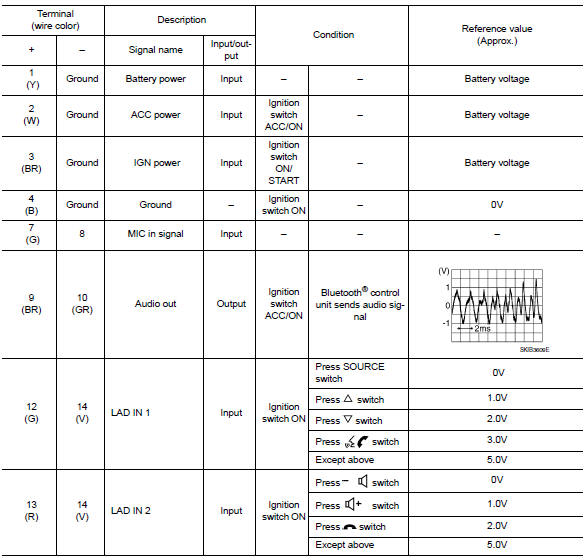

Physical values
System description
Component parts
Component parts location
Front tweeter LH
Steering switches
Audio unit
Front tweeter rh
Microphone
Front door speaker lh
Front door speaker rh
Rear speaker rh
...
Wiring diagram
Display audio without bose

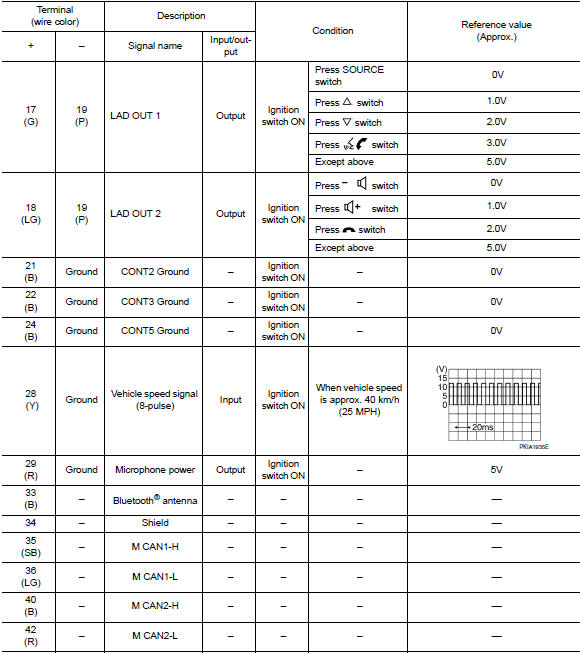

Wiring diagram
...
