Nissan Sentra Service Manual: ECU diagnosis information

A/C AUTO AMP

Reference Value

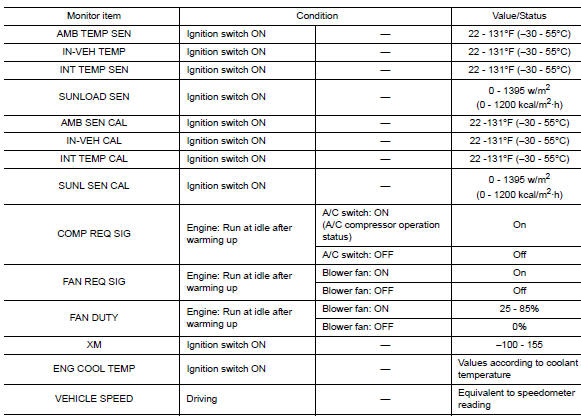

VALUES ON THE DIAGNOSIS TOOL

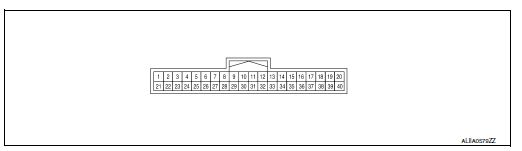

TERMINAL LAYOUT


TERMINAL LAYOUT

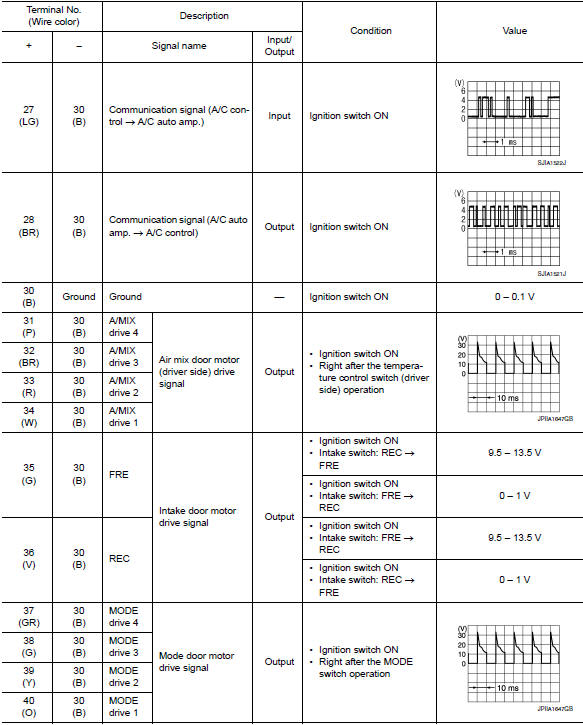

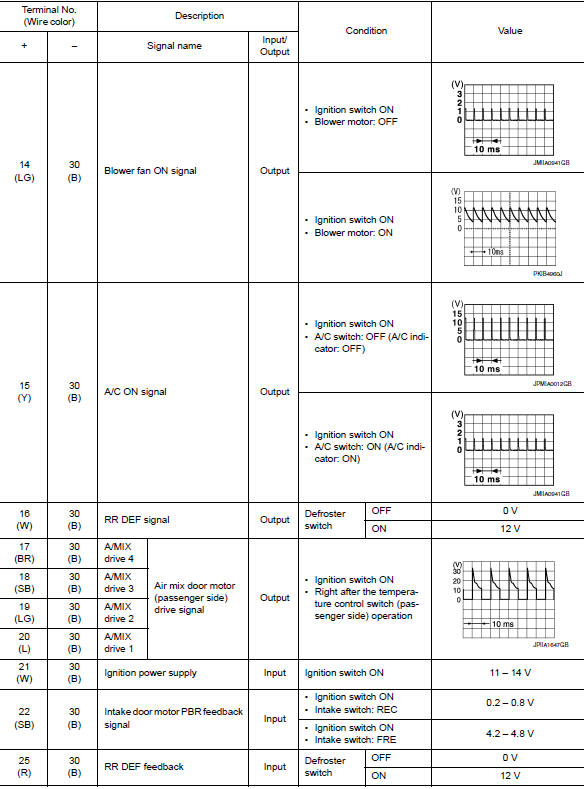

PHYSICAL VALUES


PHYSICAL VALUES



DTC Inspection Priority Chart


DTC Inspection Priority Chart

If some DTCs are displayed at the same time, perform inspections one by one based on the following priority chart.

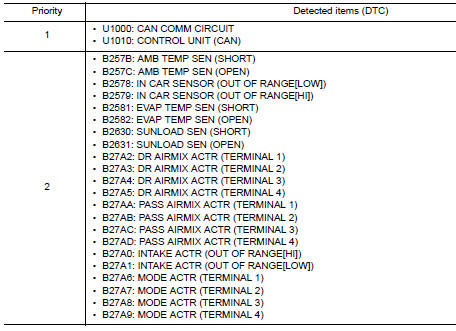

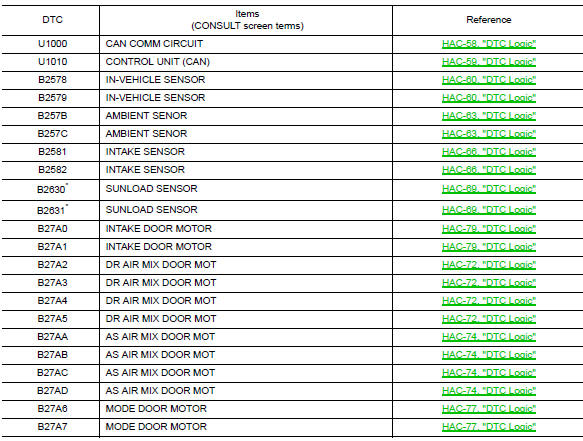

DTC Index


DTC Index


*: Perform self-diagnosis under direct sunlight. When performing indoors, aim


*: Perform self-diagnosis under direct sunlight. When performing indoors, aim a light (more than 60 W) at sunload sensor, otherwise selfdiagnosis reports an error even though the sunload sensor is functioning normally.

ECM, IPDM E/R, BCM

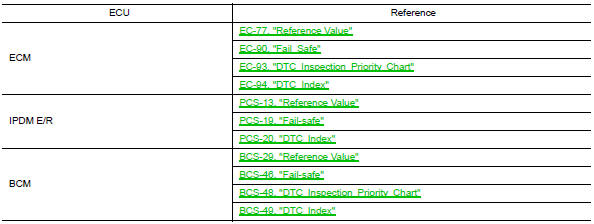

List of ECU Reference

Wiring diagram


System description
Component parts Component part location ECM IPDM E/R BCM (view with instrument panel removed) A/C auto amp. (view with A/C switch assembly removed) A/C switch assembly A/C Com ...

Wiring diagram
AUTOMATIC AIR CONDITIONING SYSTEM Wiring Diagram ...
