U1000 CAN COMM CIRCUIT

Description

Refer to lan-7, "can communication system : system description".

Dtc logic

Dtc detection logic

Note:

U1000 can be set if a module harness was disconnected and reconnected, perhaps during a repair. Confirm that there are actual CAN diagnostic symptoms and a present DTC by performing the Self Diagnostic Result procedure.

Consult display

 Dtc detection condition

 Possible cause
Can comm circuit [u1000] When any listed module cannot communicate with CAN communication signal continuously for 2 seconds or more with ignition switch ON In CAN communication system, any item (or items) of the following listed below is malfunctioning.
  • Transmission
  • Receiving (ECM)
  • Receiving (VDC/TCS/ABS)
  • Receiving (METER/M&A)
  • Receiving (tcm)
  • Receiving (ipdm e/r)

Diagnosis procedure

1. Perform self diagnostic result

  1. Turn ignition switch on and wait for 2 seconds or more.
  2. Check “self- diag results”.

Is “can comm circuit” displayed? Yes >> perform can diagnosis as described in diagnosis section of consult operation manual.

No >> refer to gi-39, "intermittent incident".

U1010 control unit (can)

Dtc logic

Dtc detection logic

Consult display

 Dtc detection condition

 Possible cause
CONTROL UNIT (CAN) [U1010] BCM detected internal CAN communication circuit malfunction. Bcm

Diagnosis procedure

1.Replace BCM

When dtc “u1010” is detected, replace bcm.

>> Replace bcm. Refer to bcs-73, "removal and installation".

B2621 inside antenna

Dtc logic

Note:

The signal tech ii tool (j-50190) can be used to perform the following functions. Refer to the signal tech ii user guide for additional information.

Dtc detection logic

Dtc

 Consult display description

 Dtc detecting condition

 Possible cause
B2621 Inside antenna 1 An excessive high or low voltage from inside antenna (instrument center) is sent to BCM
  • Inside key antenna (instrument center)
  • Harness between bcm and inside key antenna (instrument center)
  • BCM

Dtc confirmation procedure

1.Perform dtc confirmation procedure

  1. Select INTELLIGENT KEY of BCM using CONSULT.
  2. Select INSIDE ANT DIAGNOSIS in WORK SUPPORT mode.
  3. Perform inside key antenna (INSIDE ANT DIAGNOSIS) on WORK SUPPORT of INTELLIGENT KEY.
  4. Check BCM for DTC.

Is inside key antenna DTC detected? YES >> Refer to DLK-72, "Diagnosis Procedure".

NO >> Inside key antenna (instrument center) is OK.

Diagnosis procedure

Note:

The signal tech ii tool (j-50190) can be used to perform the following functions. Refer to the signal tech ii user guide for additional information.

Regarding wiring diagram information, refer to dlk-49, "wiring diagram".

1.Check inside key antenna input signal 1

  1. Turn ignition switch on.

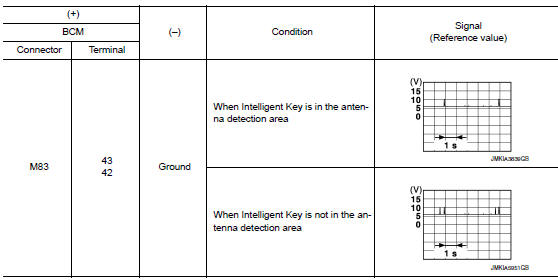

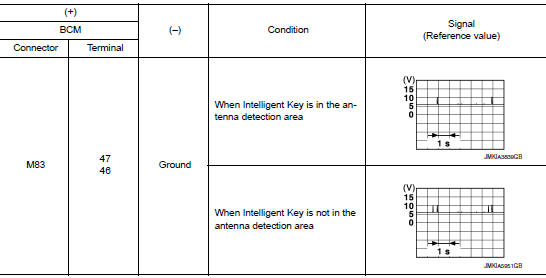

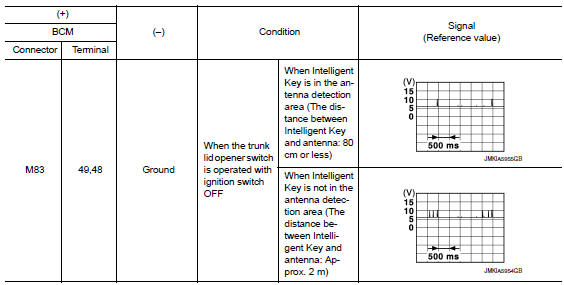

  2. Check signal between bcm harness connector and ground using oscilloscope.

Is the inspection result normal?


Is the inspection result normal? Yes >> replace bcm. Refer to bcs-73, "removal and installation".

No >> go to 2.

2.Check inside key antenna circuit

  1. Turn ignition switch OFF.
  2. Disconnect bcm connector and inside key antenna (instrument center) connector.
  3. Check continuity between bcm harness connector and inside key antenna (instrument center) harness connector.


  1. Check continuity between bcm harness connector and ground.

Is the inspection result normal?


Is the inspection result normal? Yes >> go to 3.

No >> repair or replace harness.

3.Check inside key antenna input signal 2

  1. Replace inside key antenna (instrument center). (New antenna or other antenna)
  2. Connect bcm connector and inside key antenna (instrument center) connector.
  3. Turn ignition switch on.

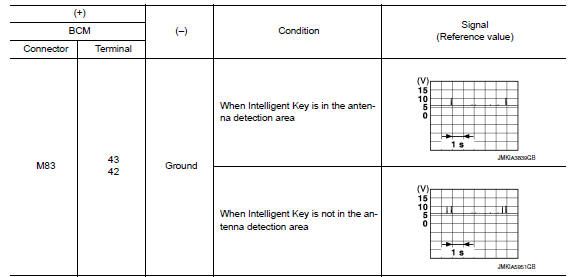

  4. Check signal between bcm harness connector and ground using oscilloscope

Is the inspection result normal?


Is the inspection result normal? Yes >> replace inside key antenna (instrument center).

No >> replace bcm. Refer to bcs-73, "removal and installation".

B2622 inside antenna

Dtc logic

Note:

The Signal Tech II Tool (J-50190) can be used to perform the following functions. Refer to the Signal Tech II User Guide for additional information.

Dtc detection logic

Dtc

 Consult display description

 Dtc detecting condition

 Possible cause
B2622 INSIDE ANTENNA 2 An excessive high or low voltage from inside antenna (console) is sent to bcm
  • Inside key antenna (console)
  • Harness between BCM and inside key antenna (console)
  • BCM

Dtc confirmation procedure

1.Perform dtc confirmation procedure

  1. Select intelligent key of bcm using consult.
  2. Select inside ant diagnosis in work support mode.
  3. Perform inside key antenna (inside ant diagnosis) on work support of intelligent key.
  4. Check BCM for DTC.

Is inside key antenna dtc detected? Yes >> refer to dlk-75, "diagnosis procedure".

No >> inside key antenna (console) is ok.

Diagnosis procedure

Note:

The Signal Tech II Tool (J-50190) can be used to perform the following functions. Refer to the Signal Tech II User Guide for additional information.

Regarding wiring diagram information, refer to dlk-49, "wiring diagram".

1.Check inside key antenna input signal 1

  1. Turn ignition switch ON.

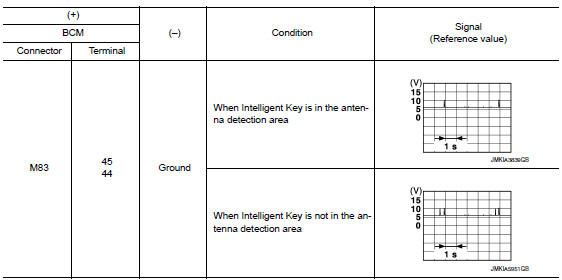

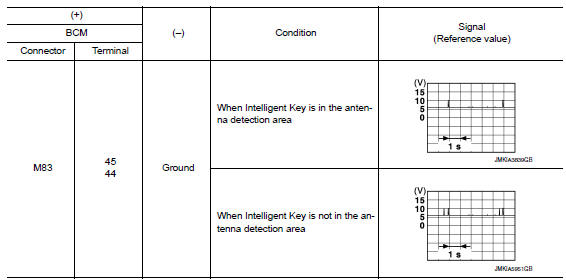

  2. Check signal between bcm harness connector and ground using oscilloscope.

Is the inspection result normal?


Is the inspection result normal? YES >> Replace BCM. Refer to BCS-73, "Removal and Installation".

NO >> GO TO 2.

2.Check inside key antenna circuit

  1. Turn ignition switch OFF.
  2. Disconnect BCM connector and inside key antenna (console) connector
  3. Check continuity between bcm harness connector and inside key antenna (console) harness connector.


  1. Check continuity between bcm harness connector and ground.

Is the inspection result normal?


Is the inspection result normal? YES >> GO TO 3.

NO >> Repair or replace harness.

3.Check inside key antenna input signal 2

  1. Replace inside key antenna (console). (New antenna or other antenna)
  2. Connect bcm connector and inside key antenna (console) connector.
  3. Turn ignition switch ON.
  4. Check signal between BCM harness connector and ground using oscilloscope.

Is the inspection result normal?


Is the inspection result normal? Yes >> replace inside key antenna (console).

No >> replace bcm. Refer to bcs-73, "removal and installation".

B2623 inside antenna

Dtc logic

Note:

The Signal Tech II Tool (J-50190) can be used to perform the following functions. Refer to the Signal Tech II User Guide for additional information.

Dtc detection logic

Dtc

 Consult display description

 Dtc detecting condition

 Possible cause
B2623 INSIDE ANTENNA 3 An excessive high or low voltage from inside antenna (trunk room) is sent to bcm
  • Inside key antenna (trunk room)
  • Harness between bcm and inside key antenna (trunk room)
  • Bcm

Dtc confirmation procedure

1.Perform dtc confirmation procedure

  1. Select INTELLIGENT KEY of BCM using CONSULT.
  2. Select inside ant diagnosis in work support mode.
  3. Perform inside key antenna (inside ant diagnosis) on work support of intelligent key.
  4. Check BCM for DTC.

Is inside key antenna dtc detected? Yes >> refer to dlk-78, "diagnosis procedure".

No >> inside key antenna (trunk room) is ok.

Diagnosis procedure

Note:

The signal tech ii tool (j-50190) can be used to perform the following functions. Refer to the signal tech ii user guide for additional information.

Regarding Wiring Diagram information, refer to DLK-49, "Wiring Diagram".

1.Check inside key antenna input signal 1

  1. Turn ignition switch ON.

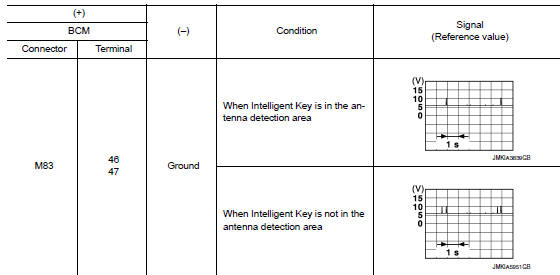

  2. Check signal between bcm harness connector and ground using oscilloscope.

Is the inspection result normal?


Is the inspection result normal? Yes >> replace bcm. Refer to bcs-73, "removal and installation".

No >> go to 2.

2.Check inside key antenna circuit

  1. Turn ignition switch off.
  2. Disconnect BCM connector and inside key antenna (trunk room) connector.
  3. Check continuity between BCM harness connector and inside key antenna (trunk room) harness connector.


  1. Check continuity between BCM harness connector and ground.

Is the inspection result normal?


Is the inspection result normal? Yes >> go to 3.

No >> repair or replace harness.

3.Check inside key antenna input signal 2

  1. Replace inside key antenna (trunk room). (New antenna or other antenna)
  2. Connect bcm connector and inside key antenna (trunk room) connector.
  3. Turn ignition switch ON.
  4. Check signal between bcm harness connector and ground using oscilloscope.

Is the inspection result normal?


Is the inspection result normal? Yes >> replace inside key antenna (trunk room).

No >> replace bcm. Refer to bcs-73, "removal and installation".

B2626 outside antenna

Dtc logic

Note:

The signal tech ii tool (j-50190) can be used to perform the following functions. Refer to the signal tech ii user guide for additional information.

Dtc detection logic

DTC

 CONSULT display description

 DTC detecting condition

 Possible cause
B2626 B2626 OUTSIDE ANTENNA 1 An excessive high or low voltage from outside key antenna (driver side) is sent to BCM
  • Outside key antenna (driver side)
  • Harness between BCM and outside key antenna (driver side)
  • BCM

DTC CONFIRMATION PROCEDURE

1.PERFORM DTC CONFIRMATION PROCEDURE

  1. Turn ignition switch ON.
  2. Check “Self Diagnostic Result” mode of “BCM” using CONSULT.

Is DTC detected? YES >> Refer to DLK-81, "Diagnosis Procedure".

NO >> Outside key antenna (driver side) is OK.

Diagnosis Procedure

NOTE:

The Signal Tech II Tool (J-50190) can be used to perform the following functions. Refer to the Signal Tech II User Guide for additional information.

Regarding Wiring Diagram information, refer to DLK-49, "Wiring Diagram".

1.Check outside key antenna input signal 1

  1. Turn ignition switch ON.

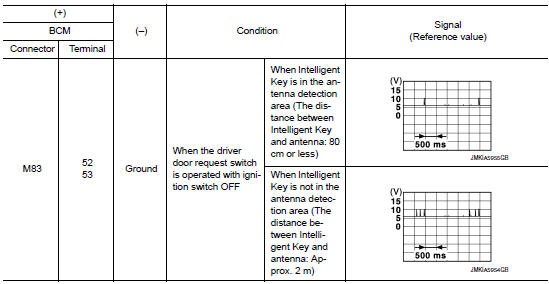

  2. Check signal between BCM harness connector and ground using oscilloscope.

Is the inspection result normal?


Is the inspection result normal? YES >> Replace BCM. Refer to BCS-73, "Removal and Installation".

NO >> GO TO 2.

2.Check outside key antenna circuit

  1. Turn ignition switch OFF.
  2. Disconnect bcm connector and outside key antenna (driver side) connector.
  3. Check continuity between bcm harness connector and outside key antenna (driver side) harness connector.


  1. Check continuity between bcm harness connector and ground.

Is the inspection result normal?


Is the inspection result normal? Yes >> go to 3.

No >> repair or replace harness.

3.Check outside key antenna input signal 2

  1. Replace outside key antenna (driver side). (New antenna or other antenna)
  2. Connect bcm connector and outside key antenna (driver side) connector.
  3. Turn ignition switch on.

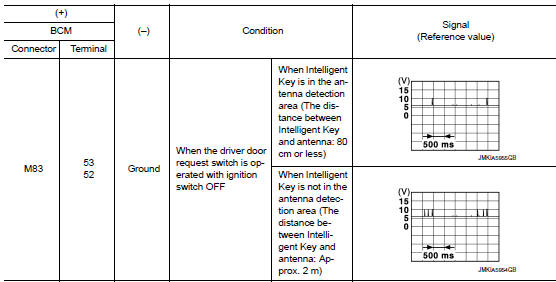

  4. Check signal between bcm harness connector and ground using oscilloscope.

Is the inspection result normal?


Is the inspection result normal? Yes >> replace outside key antenna (driver side).

No >> replace bcm. Refer to bcs-73, "removal and installation".

B2627 outside antenna

Dtc logic

Note:

The Signal Tech II Tool (J-50190) can be used to perform the following functions. Refer to the Signal Tech II User Guide for additional information.

Dtc detection logic

Dtc

 Consult display description

 Dtc detecting condition

 Possible cause
B2627 Outside antenna 2 An excessive high or low voltage from outside key antenna (passenger side ) is sent to BCM
  • Outside key antenna (passenger side)
  • Harness between BCM and outside key antenna (passenger side)
  • BCM

Dtc confirmation procedure

1.Perform dtc confirmation procedure

  1. Turn ignition switch on.
  2. Check self diagnostic result mode of bcm using consult.

Is outside key antenna dtc detected? Yes >> refer to dlk-84, "diagnosis procedure".

No >> outside key antenna (passenger side) is ok.

Diagnosis procedure

Note:

The signal tech ii tool (j-50190) can be used to perform the following functions. Refer to the signal tech ii user guide for additional information.

Regarding wiring diagram information, refer to dlk-49, "wiring diagram".

1.Check outside key antenna input signal 1

  1. Turn ignition switch ON.

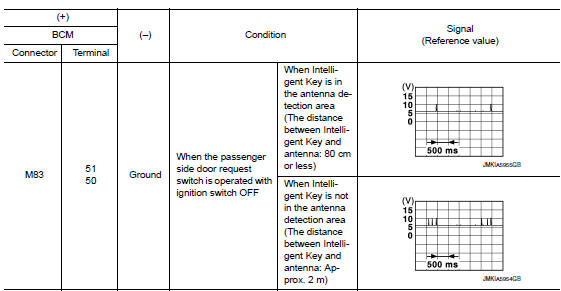

  2. Check signal between bcm harness connector and ground using oscilloscope.

Is the inspection result normal?


Is the inspection result normal? Yes >> replace bcm. Refer to bcs-73, "removal and installation".

No >> go to 2.

2.Check outside key antenna circuit

  1. Turn ignition switch OFF.
  2. Disconnect BCM connector and outside key antenna (passenger side) connector.
  3. Check continuity between bcm harness connector and outside key antenna (passenger side) harness connector.


  1. Check continuity between bcm harness connector and ground.

Is the inspection result normal?


Is the inspection result normal? Yes >> go to 3.

No >> repair or replace harness.

3.Check outside key antenna input signal 2

  1. Replace outside key antenna (passenger side). (New antenna or other antenna)
  2. Connect bcm connector and outside key antenna (passenger side) connector.
  3. Turn ignition switch on.

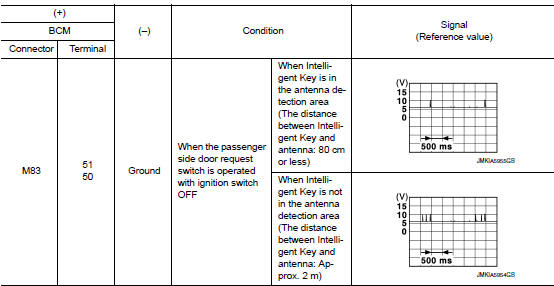

  4. Check signal between bcm harness connector and ground using oscilloscope.

Is the inspection result normal?


Is the inspection result normal? Yes >> replace outside key antenna (passenger side).

No >> replace bcm. Refer to bcs-73, "removal and installation".

B2628 outside antenna

Dtc logic

Note:

The Signal Tech II Tool (J-50190) can be used to perform the following functions. Refer to the Signal Tech II User Guide for additional information.

Dtc detection logic

Dtc

 Consult display description

 Dtc detecting condition

 Possible cause
B2628 OUTSIDE ANTENNA 3 An excessive high or low voltage from outside key antenna (rear bumper) is sent to bcm
  • Outside key antenna (rear bumper)
  • Harness between bcm and outside key antenna (rear bumper)
  • Bcm

Dtc confirmation procedure

1.Perform dtc confirmation procedure

  1. Turn ignition switch on.
  2. Check Self Diagnostic Result mode of BCM using CONSULT.

Is outside key antenna dtc detected? Yes >> refer to dlk-87, "diagnosis procedure".

No >> outside key antenna (rear bumper) is ok.

Diagnosis procedure

Note:

The signal tech ii tool (j-50190) can be used to perform the following functions. Refer to the signal tech ii user guide for additional information.

Regarding wiring diagram information, refer to dlk-49, "wiring diagram".

1.Check outside key antenna input signal 1

  1. Turn ignition switch ON.
  2. Check signal between BCM harness connector and ground using oscilloscope.

Is the inspection result normal?


Is the inspection result normal? Yes >> replace bcm. Refer to bcs-73, "removal and installation".

No >> go to 2.

2.Check outside key antenna circuit

  1. Turn ignition switch off.
  2. Disconnect bcm connector and outside key antenna (rear bumper) connector.
  3. Check continuity between bcm harness connector and outside key antenna (rear bumper) harness connector.


  1. Check continuity between BCM harness connector and ground.

Is the inspection result normal?


Is the inspection result normal? Yes >> go to 3.

No >> repair or replace harness.

3.Check outside key antenna input signal 2

  1. Replace outside key antenna (rear bumper). (New antenna or other antenna)
  2. Connect bcm and outside key antenna (rear bumper) connector.
  3. Turn ignition switch on.
  4. Check signal between BCM harness connector and ground using oscilloscope.

Is the inspection result normal?


Is the inspection result normal? Yes >> replace outside key antenna (rear bumper).

No >> replace bcm. Refer to bcs-73, "removal and installation".

Basic inspection
Diagnosis and repair work flow Work flow OVERALL SEQUENCE Detailed flow 1.Get information for symptom Get detailed information from the customer about the symptom (the condition and the ...

Power supply and ground circuit
Diagnosis procedure Regarding wiring diagram information, refer to bcs-51, "wiring diagram". 1.Check fuses and fusible link Check that the following fuses and fusible link are not blown. ...

Other materials:

When reading the manual
This manual includes information for all features and equipment available on this model. Features and equipment in your vehicle may vary depending on model, trim level, options selected, order, date of production, region or availability. Therefore, you may find information about features or eq ...

Front wiper motor lo circuit
Component function check 1. Check front wiper lo operation Ipdm e/r auto active test Start ipdm e/r auto active test. Refer to pcs-9, "diagnosis description" (with intelligent key system) or pcs-37, "diagnosis description" (without intelligent key system). Check tha ...

Strg branch line circuit
Diagnosis procedure 1.Check connector Turn the ignition switch OFF. Disconnect the battery cable from the negative terminal. Check the terminals and connectors of the steering angle sensor for damage, bend and loose connection (unit side and connector side). Is the inspection result ...

© 2014-2026 Copyright b17.nisentra.com
