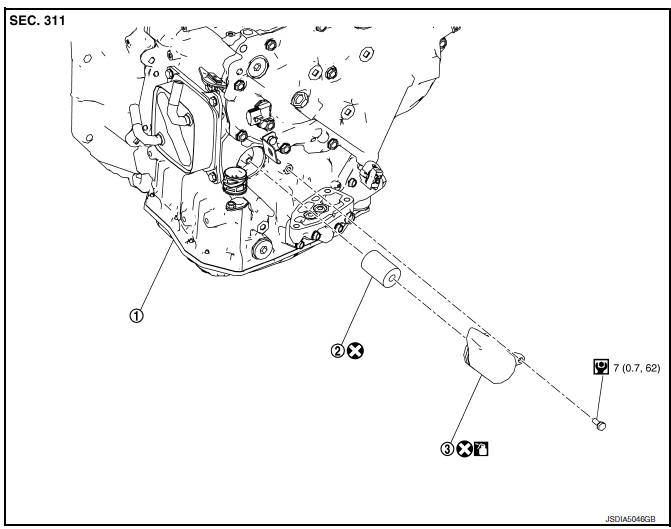

Exploded View

Transaxle assembly
CVT fluid filter
Fluid filter cover

Removal and Installation CVT fluid

Removal and Installation

REMOVAL

Remove neighboring parts of CVT fluid filter.
Remove fluid filter cover mounting bolt (A).

Remove fluid filter cover (1) from transaxle by rotating leftward.

Remove CVT fluid filter (1) from transaxle.

INSTALLATION

INSTALLATION

Note the followings and install in the reverse order of removal.

CAUTION:

Do not reuse fluid filter and fluid filter cover.
Apply CVT fluid to fluid filter cover.

Inspection

INSPECTION AFTER INSTALLATION

Start the engine and check visually that there is no leakage of engine coolant and CVT fluid.
Check CVT fluid level.
