Nissan Sentra Service Manual: Cooling fan

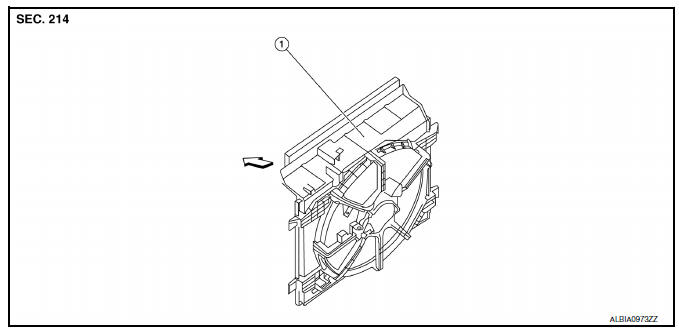

Component
- Fan shroud and motor assembly
WARNING:
Do not remove the radiator cap when the engine is hot. Serious burns could occur from high-pressure engine coolant escaping from the radiator. Wrap a thick cloth around the cap. Slowly push down and turn it a quarter turn to allow built-up pressure to escape. Carefully remove the cap by pushing it down and turning it all the way.
NOTE:
- When removing components such as hoses, tubes/lines, etc., cap or plug openings to prevent fluid from spilling.
- Replace the fan shroud and motor assembly as a unit. Do not replace cooling fan motor or cooling fan blade separately.
Removal and Installation
REMOVAL
- Remove engine under cover. Refer to EXT-16, "Exploded View".
- Partially drain engine coolant from the radiator. Refer to CO-12, "Changing Engine Coolant".
CAUTION:
- Perform this step when the engine is cold.
- Do not spill engine coolant on the drive belt.
- Remove the radiator core support upper cover clips (A) and screws (B), and remove.
- Remove the hood lock assembly from radiator core support (upper). Refer to DLK-154, "HOOD LOCK CONTROL : Removal and Installation".
- Remove the radiator core support (upper) bolts, then remove the radiator core support (upper). Refer to CO-15, "Exploded View".
- Disconnect filler neck hose from radiator and radiator hose (upper) from water inlet.
- Remove filler neck screws from fan shroud and motor assembly, then remove filler neck with attached hoses.
- Remove reservoir tank and reservoir tank hose.
- Disconnect fan shroud and motor assembly harness connector.
- Remove fan shroud and motor assembly.
INSTALLATION
Installation is in the reverse order of removal.
- After installation refill engine coolant and check for leaks. Refer to CO-12, "Changing Engine Coolant" and CO-11, "System Inspection".
CAUTION:
Do not spill engine coolant in engine compartment. Use a shop cloth to absorb engine coolant.
- Fan shroud and motor assembly is controlled by ECM. Refer to EC-63, "On Board Diagnosis Function".
