Nissan Sentra Service Manual: Combination meter

Reference Value

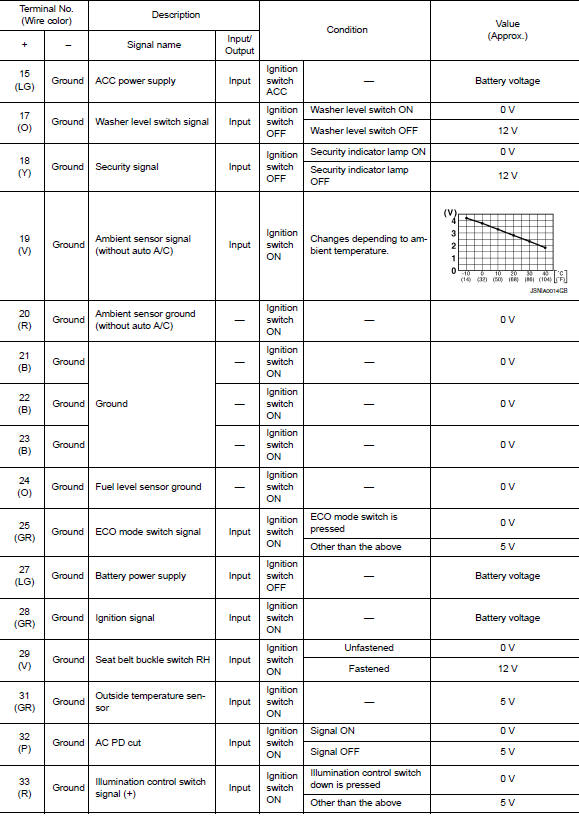

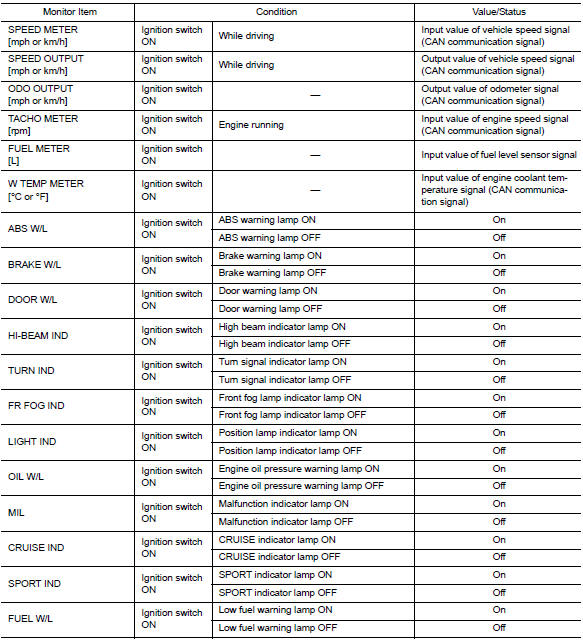

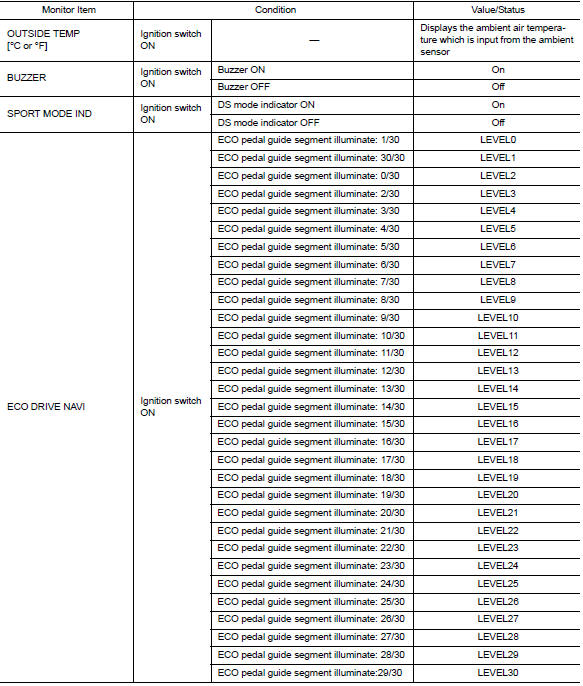

VALUES ON THE DIAGNOSIS TOOL

NOTE:

The following table includes information (items) inapplicable to this vehicle. For information (items) applicable to this vehicle, refer to CONSULT display items.



Note:


Note:

Some items are not available according to vehicle specification.

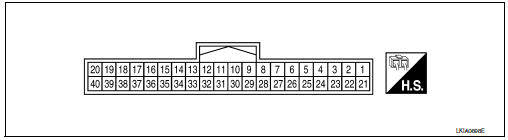

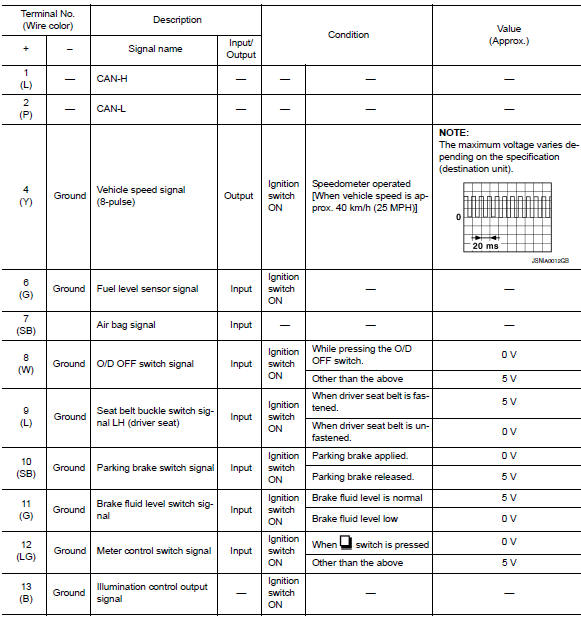

Terminal layout

Physical values


Physical values



Fail-Safe


Fail-Safe

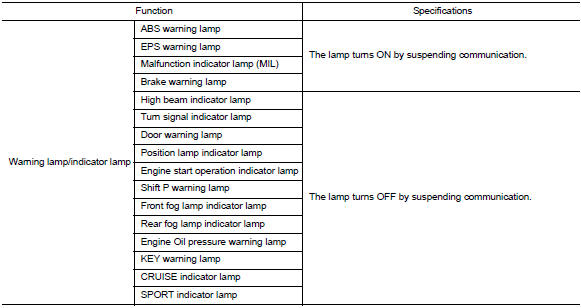

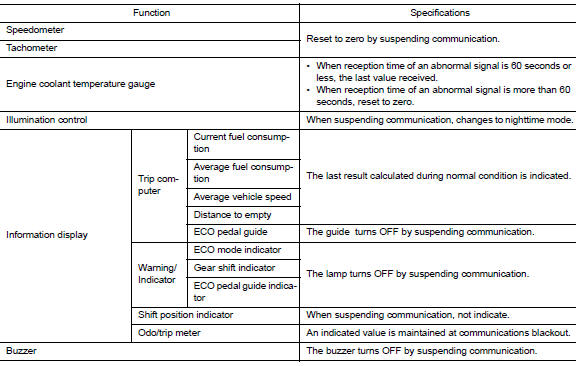

The combination meter activates the fail-safe control if can communication with each unit is malfunctioning.


DTC Index

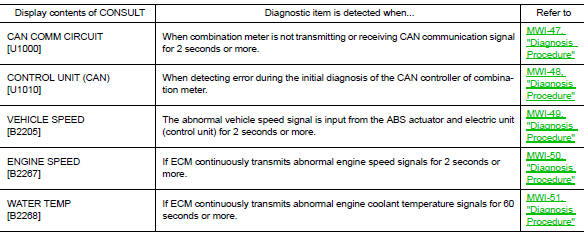

DTC Index

Bcm (body control module)


Ecu diagnosis information
...

Bcm (body control module)
List of ECU Reference ...
