Nissan Sentra Service Manual: B142X Collision detection
Description
DTC B142X COLLISION DETECTION
The air bag diagnosis sensor unit will set this DTC if it has detected a collision which has resulted in a deployment of one or more air bags or pre-tensioners. If this DTC is detected after a SRS repair, the air bag diagnosis sensor unit has not yet been replaced. This DTC can not be erased.
PART LOCATION
Refer to SRC-5, "Component Parts Location".
DTC Logic

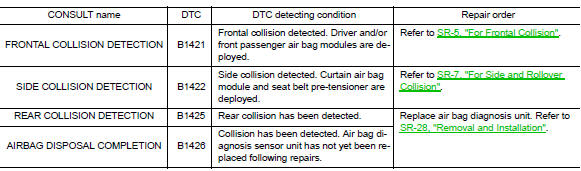

DTC DETECTION LOGIC
With CONSULT
DTC CONFIRMATION PROCEDURE (With CONSULT)
1.INSPECTION START
Turn ignition switch ON.
>> GO TO 2.
2.CHECK SELF-DIAG RESULT
Check for the DTC on CONSULT.
Is the DTC detected? YES >> Refer to SRC-98, "Diagnosis Procedure".
NO >> Inspection End.
Diagnosis Procedure
Refer to SR-5, "For Frontal Collision" or SR-7, "For Side and Rollover Collision".
