Nissan Sentra Service Manual: Automatic speed control device (ASCD)
AUTOMATIC SPEED CONTROL DEVICE (ASCD) : Switch Name and Function

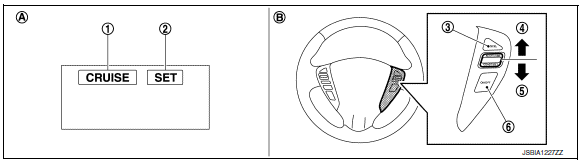

SWITCHES AND INDICATORS
- CRUISE indicator
- SET indicator*
- CANCEL switch
- ACCEL/RES switch
- COAST/SET switch
- ASCD MAIN switch
- On the combination meter
- On the steering wheel
*: Not applicable
Set speed range
ASCD system can be set the following vehicle speed.
Switch operation
| Item | Function |
| CANCEL switch | Cancels the cruise control driving. |
| ACCEL/RES switch |
|
| COAST/SET switch |
|
| ASCD MAIN switch | Master switch to activate the ASCD system. |
Refer to EC-51, "AUTOMATIC SPEED CONTROL DEVICE (ASCD) : System Description" for ASCD operating instructions.
Operation
...
On board diagnostic (OBD) system
Diagnosis Description
This system is an on board diagnostic system that records exhaust
emission-related diagnostic information
and detects a sensors/actuator-related malfunction. A malfunction is ...
