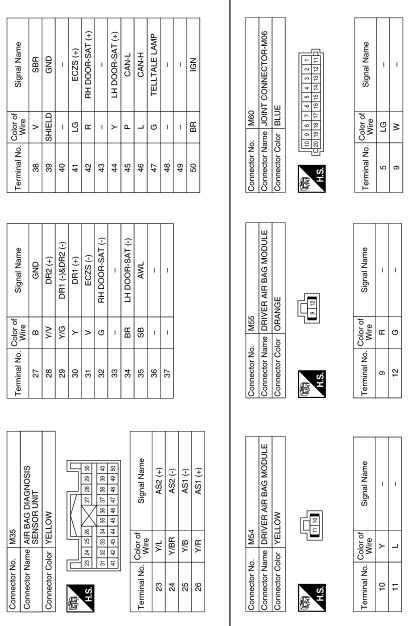

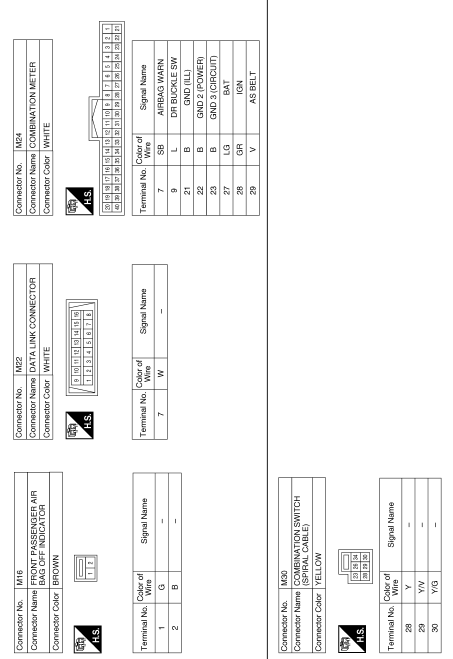

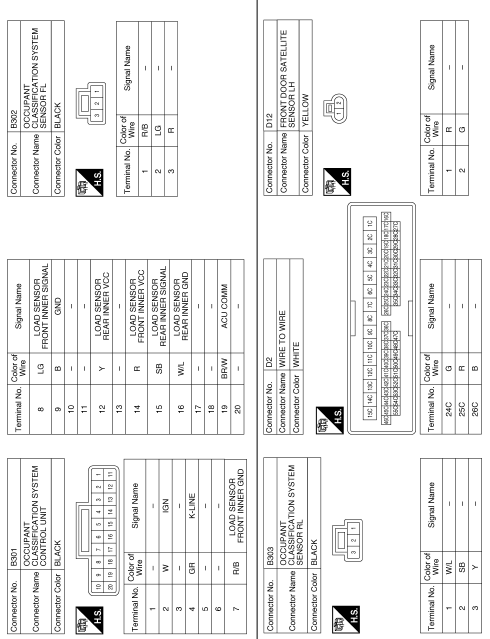

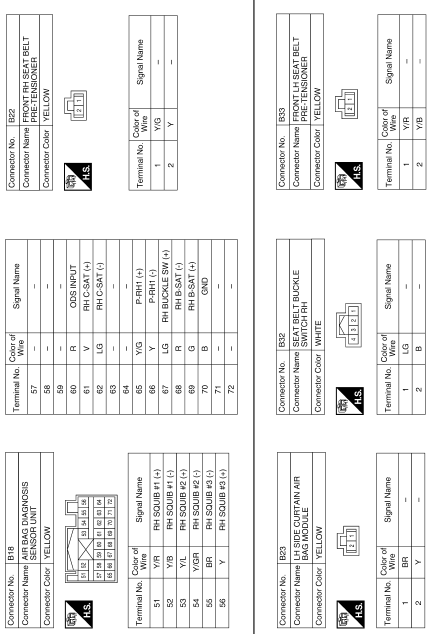

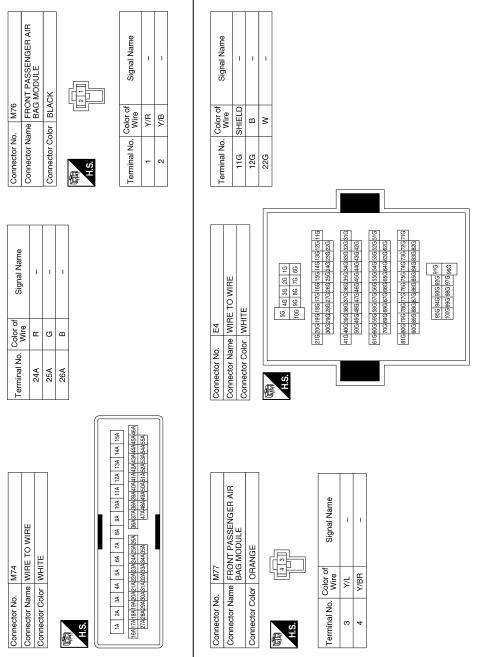

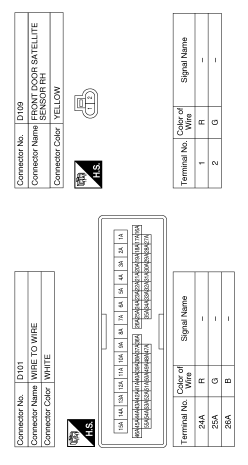

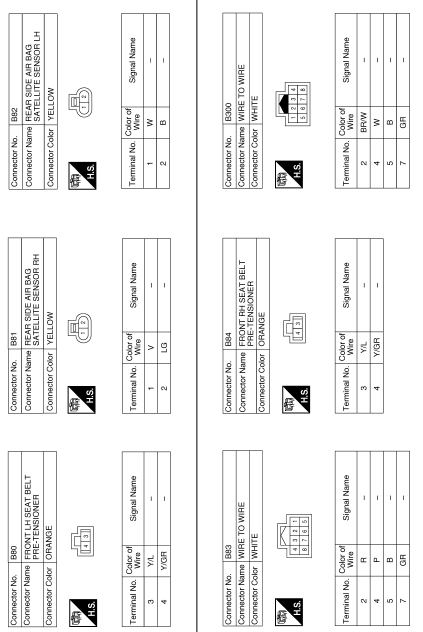

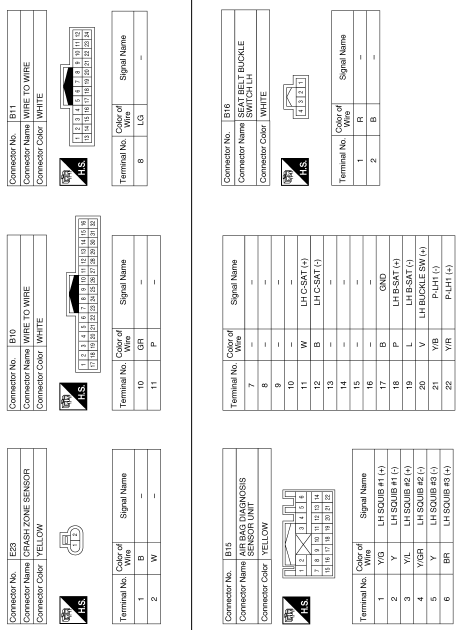

Nissan Sentra Service Manual: Wiring diagram

ECU diagnosis information

Diagnosis sensor unit DTC Index DIAGNOSTIC CODE CHART NOTE: Follow the procedures in numerical order when repairing malfunctioning parts. Confirm whether malfunction is eliminated using air bag ...

Basic inspection

...

Other materials:

Air conditioning cut control
AIR CONDITIONING CUT CONTROL : System Description SYSTEM DIAGRAM INPUT/OUTPUT SIGNAL CHART Sensor Input Signal to ECM ECM function Actuator Crankshaft position sensor (POS) Engine speed* Piston position Air conditioner cut control IPDM E/R ↓Air ...

Precaution for Supplemental Restraint System (SRS) "AIR BAG" and "SEAT BELT PRE-TENSIONER"
The Supplemental Restraint System such as “AIR BAG” and “SEAT BELT PRE-TENSIONER”, used along with a front seat belt, helps to reduce the risk or severity of injury to the driver and front passenger for certain types of collision. Information necessary to service the system ...

Can communication circuit
Diagnosis procedure 1.Connector inspection Turn the ignition switch OFF. Disconnect the battery cable from the negative terminal. Disconnect all the unit connectors on can communication system. Check terminals and connectors for damage, bend and loose connection. Is the inspection resu ...
