Nissan Sentra Service Manual: Warning chime system symptoms

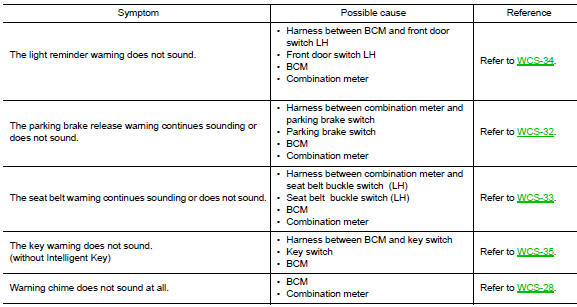

Symptom table
Caution:
Perform the self-diagnosis with consult before the symptom diagnosis. Perform the trouble diagnosis if any dtc is detected.
The parking brake release warning
continues sounding, or does not
sound
Description
The parking brake warning buzzer sounds continuously during vehicle
travel though the parking brake is
released.
The parking brake warning buzzer does not sound at all even tho ...
