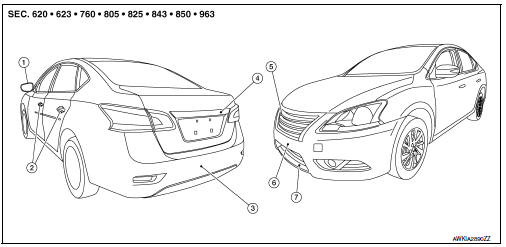

Body exterior paint color

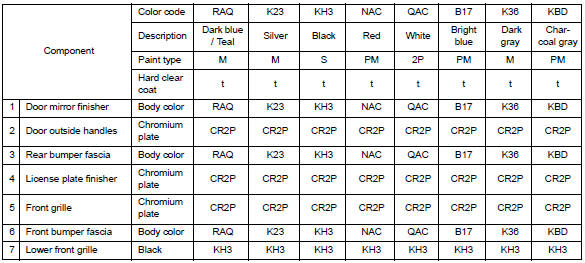

M = Metallic, S = Solid, 2S = Solid and Clear, 2P = 2-Coat Pearl, 3P = 3-Coat Pearl, PM = Pearl Metallic, t = Primerless Diamond Clear coat, Black is solvent based, all others are water based.
Body repair
PrecautionU1010 Control unit (CAN)
Description
Initial diagnosis of ABS actuator and electric unit (control
unit)
DTC Logic
DTC DETECTION LOGIC
DTC
Items
(CONSULT screen terms)
DTC detection condition
Possible cause
U1010
CONTROL UNIT (CAN)
When detecting error during the initial diagnosis
...
Side window glass
Components
Side window glass
Spacer
Headlining
Rear body pillar
Rear pillar finisher
Rear door weatherstrip
Primer area
Adhesive
7 mm (0.3 in)
12 mm (0.5 in)
Removal and Installation
REMOVAL
Remove the rear pillar finisher. Refer to INT-29, "REAR PILLAR FIN ...
Cowl top
Exploded view
Cowl top seal
Cowl top grille cap
Cowl top cover
Cowl top extension
Cowl top extension insulator
Clip
EPT seal [t: 3.0 mm (0.12 in)
Cowl top cover cap
EPT seal [t: 5.0 mm (0.20 in)]
Pawl
Clip
Front
Removal and installation
COWL TOP COVER
Removal
Rem ...
