Nissan Sentra Owners Manual: Supplemental air bag warning labels
- SRS Front Air Bag Warning Labels

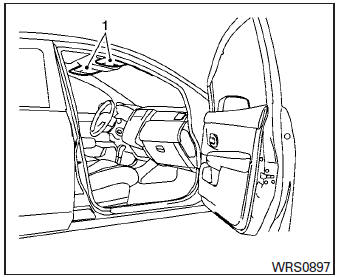

Warning labels about the supplemental frontimpact air bag system are placed in the vehicle as shown in the illustration.
