Nissan Sentra Service Manual: Standardized relay

Description

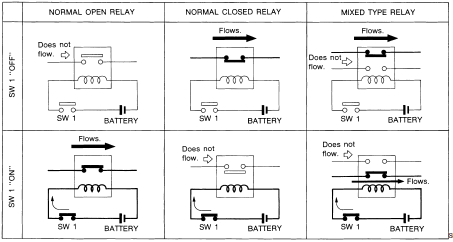

Normal open, normal closed and mixed type relays

Relays can mainly be divided into three types: normal open, normal closed and mixed type relays.

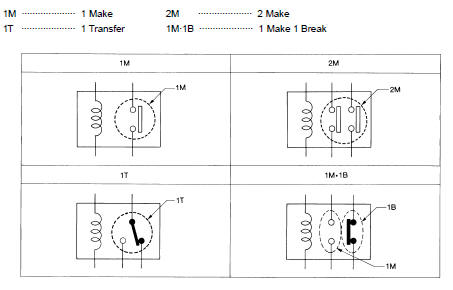

Type of standardized relays


Type of standardized relays

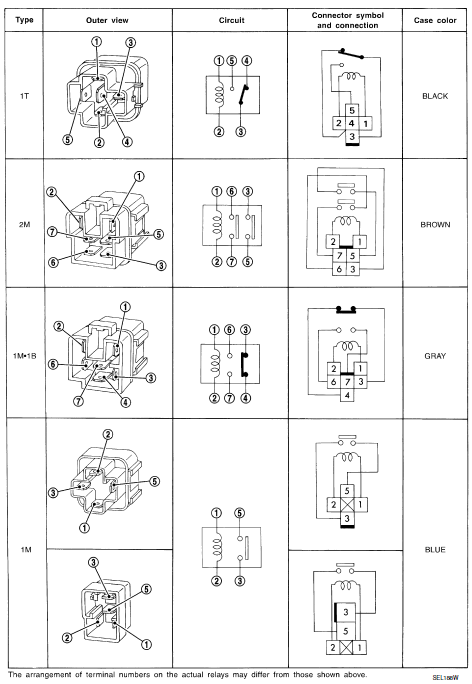

Fuse block - junction box  (J/B)


Harness connector
Description Harness connector (tab-locking type) The tab-locking type connectors help prevent accidental looseness or disconnection. The tab-locking type connectors are disconnected by pushi ...

Fuse block - junction box  (J/B)
Terminal arrangement ...
