Nissan Sentra Service Manual: Service data and specifications (SDS)

Nissan Sentra Service Manual / Suspension / Front suspension / Service data and specifications (SDS)

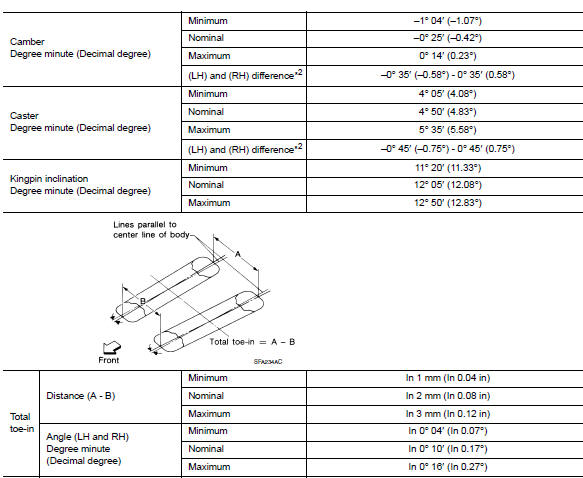

Wheel Alignment (Unladen*1)

UNITED STATES and CANADA

*1: Fuel, engine coolant, and lubricants are full. Spare tire, jack, hand


*1: Fuel, engine coolant, and lubricants are full. Spare tire, jack, hand tools, and mats are in designated positions.

*2: The difference when assuming the (LH) side is the standard.

Ball Joint

Wheelarch Height (Unladen*)


Wheelarch Height (Unladen*)

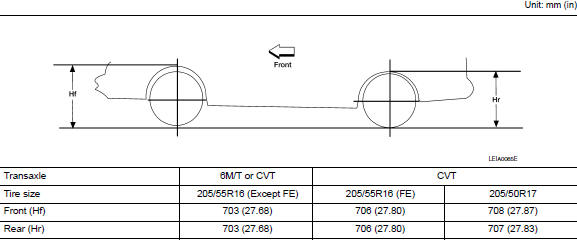

UNITED STATES

*: Fuel, engine coolant, and lubricants are full. Spare tire, jack, hand


*: Fuel, engine coolant, and lubricants are full. Spare tire, jack, hand tools, and mats are in designated positions.

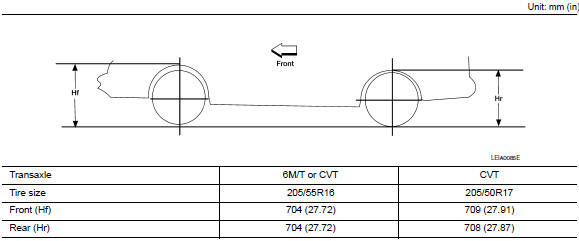

CANADA

*: Fuel, engine coolant, and lubricants are full. Spare tire, jack, hand


*: Fuel, engine coolant, and lubricants are full. Spare tire, jack, hand tools, and mats are in designated positions.

Unit disassembly and assembly
Front coil spring and strut Exploded View Piston rod lock nut Strut mount insulator Strut mount bearing Bound bumper Coil spring Lower rubber seat Strut Steering knuckle Fro ...
