Nissan Sentra Service Manual: Service data and specifications
Wheel Bearing
Drive Shaft

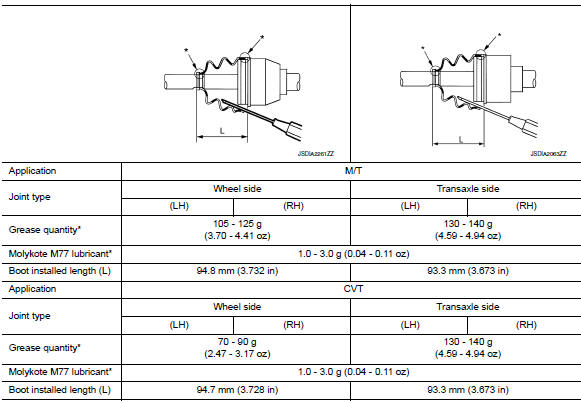

Drive Shaft Specifications
*: Always check with the Parts Department for the latest parts information.

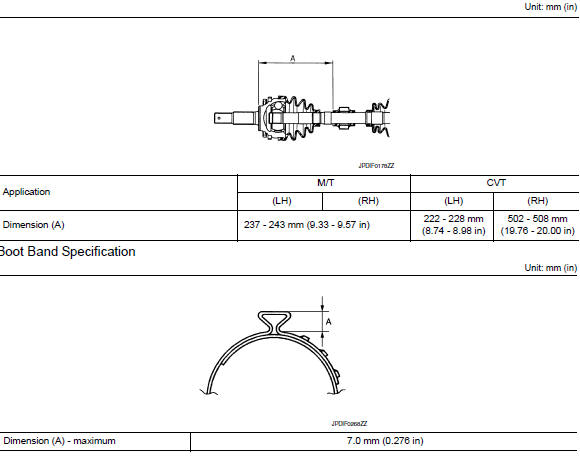

Dynamic Damper Specifications
Except 6M/T
EXCEPT 6M/T : Exploded View
Circular clip
Dust shield
Slide joint housing
Snap ring
Spider assembly
Boot band
Boot
Shaft
Damper band
Dynamic damper
Circular clip
Joint s ...
Rear axle
...
