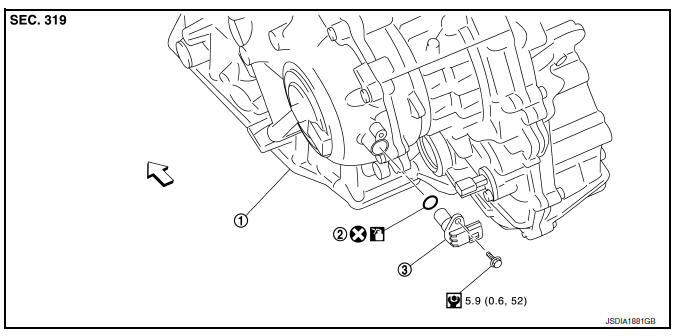

Exploded View

Vehicle front
Always replace after every
disassembly.
: NВ·m (kg-m, in-lb)
: Genuine NISSAN CVT Fluid NS-3
Removal and Installation
REMOVAL
INSTALLATION
Installation is in the reverse order of removal.
CAUTION:
Inspection and Adjustment
INSPECTION AFTER INSTALLATION
Start the engine and check visually that there is no leakage of CVT fluid.
ADJUSTMENT AFTER INSTALLATION
Adjust CVT fluid level. Refer to TM-251, "Adjustment".
Primary speed sensor
Output speed sensorJump starting
