Nissan Sentra Owners Manual: Replacing
Replace the wiper blades if they are worn.
To replace the windshield wiper blades, follow the procedure below:
- When ignition switch is ON or within 60 seconds after placing the ignition switch from ON to OFF position.
- Quickly push the windshield wiper and washer lever to the mist position twice 2 within 0.5 seconds. This action will cause the wipers to take the service position automatically.
- Lift the wiper arm away from the windshield.
Type A
Type B
- Push the release tab 4 .
- Move the wiper blade down 5 and remove.
- Insert the new wiper blade onto the wiper arm until it clicks into place.
- Rotate the wiper blade so the dimple is in the groove.

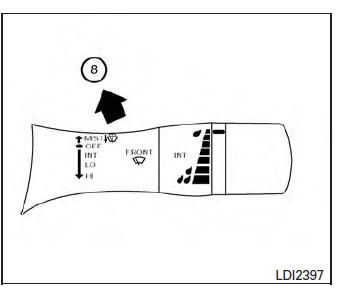

- Finally, push the windshield wiper and washer lever to the mist position 8 . This action will cause the wipers to resume the set position.
CAUTION
- After wiper blade replacement, return the wiper arm to its original position; otherwise it may be damaged when the hood is opened.
- Make sure the wiper blades contact the glass; otherwise the arms may be damaged from wind pressure.
