Nissan Sentra Service Manual: Removal and installation

Ipdm e/r

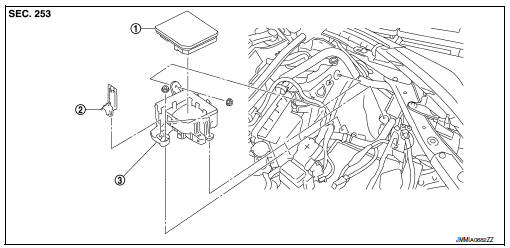

Exploded view


  1. Ipdm e/r
  2. Ipdm e/r cover a
  3. Ipdm e/r cover b

Removal and installation

Caution:

Ipdm e/r integrated relays are not serviceable and must not be removed from unit.

Removal

  1. Remove inlet air duct (upper). Refer to em-25, "removal and installation".
  2. Remove battery. Refer to pg-50, "removal and installation (battery)".
  3. Release pawls (a) on ipdm e/r cover and remove ipdm e/r (1) from ipdm e/r cover b (2).


  1. Disconnect harness connector and then remove ipdm e/r.
  2. Remove engine room harness from ipdm e/r cover b.
  3. Remove ipdm e/r cover b nuts (a).


  1. Insert a suitable tool (A) between IPDM E/R cover A (1) and IPDM E/R cover B (2), disengage pawls, and remove IPDM E/R cover A.


  1. Remove ipdm e/r cover b.

Installation

Installation is in the reverse order of removal.
