Nissan Sentra Service Manual: Rear regulator

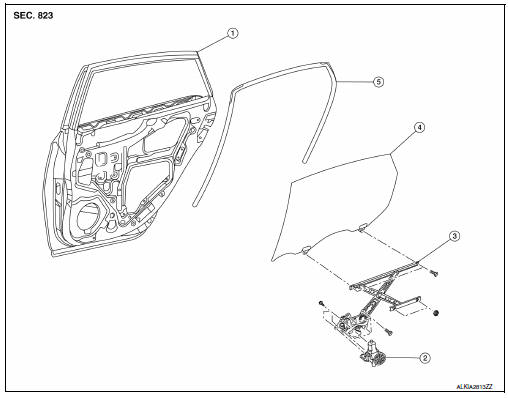

Exploded View
- Rear door panel
- Rear door glass regulator motor
- Rear door glass regulator
- Rear door glass
- Rear door glass rubber run
Removal and Installation
NOTE:
RH rear door panel shown; LH side similar
REMOVAL
- Remove the rear door finisher. Refer to INT-19, "Removal and Installation".
- Remove the vapor barrier.
CAUTION:
Use care to not damage or tear vapor barrier during removal.
- Partially remove the rear door window run rubber.
- Remove bolts (A) and the rear door glass rear run channel (1).
- Temporarily reconnect the rear power window switch to raise/ lower the rear door glass until the rear door regulator to glass bolts (A) can be seen through the access holes.
- Remove the rear door regulator to glass bolts (A).
- Raise up the rear door glass and hold with a suction lifter (A).
- Disconnect the harness connector from the rear door glass regulator.
- Remove nuts/bolts (
) and
the rear door glass regulator (1).
INSPECTION AFTER REMOVAL
Check the rear door glass regulator for the following items. If a malfunction is detected, replace or grease it.
- Gear wear
- Regulator deformation
- Grease condition for each sliding part
- Apply multi-purpose grease at sliding points.
INSTALLATION
Installation is in the reverse order of removal.
Rear door glass
Removal and Installation
REMOVAL
NOTE:
LH rear door panel shown; RH similar.
Remove the rear door finisher. Refer to INT-19, "Removal and
Installation".
Remove the vapor barrier. ...
Rear power window motor
Removal and Installation
REMOVAL
Remove the rear door glass regulator (1). Refer to GW-21,
"Removal and Installation"
Remove the screws and the rear power window motor (2).
I ...
